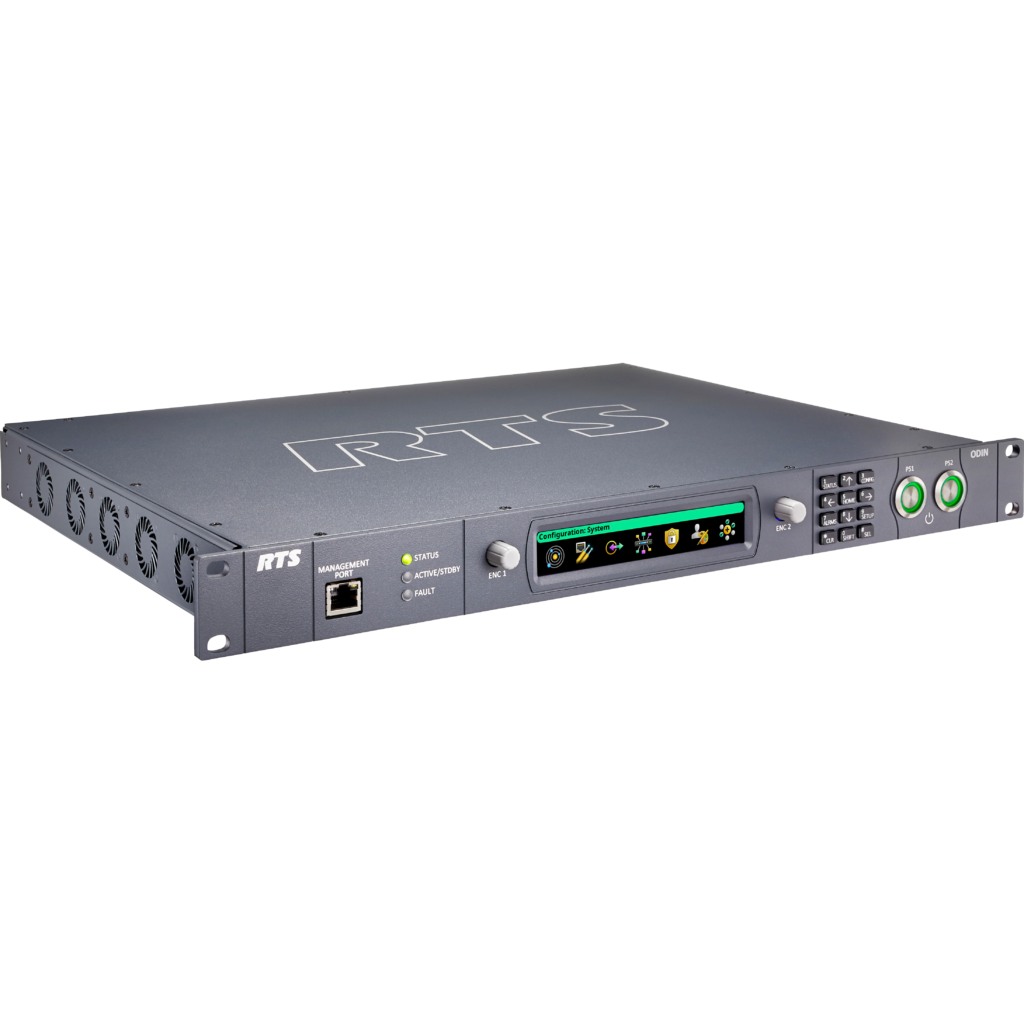

RTS Odin Intercom Mainframe

325,00

The RTS Odin is a versatile Intercom main frame. Based on Dante and AES70 the Frame makes interfacing with your Dante Audio setup easy. In conjunction with a Dante Audio Box or Audio console the ODIN finishes your production communications. Easy to manage and reliable.

  • oktober 2021
  • Ma
  • Di
  • Wo
  • Do
  • Vr
  • Za
  • Zo
  • 01
  • 02
  • 03
  • 04
  • 05
  • 06
  • 07
  • 08
  • 09
  • 10
  • 11
  • 12
  • 13
  • 14
  • 15
  • 16
  • 17
  • 18
  • 19
  • 20
  • 21
  • 22
  • 23
  • 24
  • 25
  • 26
  • 27
  • 28
  • 29
  • 30
  • 31

Kies een datum

Beschrijving

The RTS Odin is a versatile Intercom main frame. Based on Dante and AES70 the Frame makes interfacing with your Dante Audio setup easy. In conjunction with a Dante Audio Box or Audio console the ODIN finishes your production communications. Easy to manage and reliable. The system is delivered in a “AW RAQ” based flight case making deployment and installation easy. Also included is a Extreme 48Port Switch.

When you would like to use RVON please note that RVON will not work over a normal NAT internet link and a VPN solution is needed. YourSide can help provide a fitting RVON / RTS Odin solution. Use our contact form or give us a call to help figure out a fitting solution.

Extra informatie

Gewicht 15 kg
Supported Protocols

AES67, AES70, Dante, RTS Serial Interface (Older Frames like ZUES), RVON

Delivery

Flightcase

including

24 Port Ethernet Smart Ethernet Switch, European Powercord

Matrix Size

Default 16×16 Ports (Maximum 128 x 128)

Odin Manual

Download(7 MB)

ODIN / ROAMEO network specs

Download(876 KB)

RTS applications guide

Download(14 MB)

AZ Edit manual

Download(6 MB)
