YOURSIDE – OB Van HD

Beschrijving

Compact powerhouse equipped with 4 CCU’s for Grass valley LDX80 cams and can be expanded to 8 camera’s for pro HD/4K productions.  Also check our Data sheet for details on Power requirements and Parking space needed for the OB van. Specs can be found under “Resources”

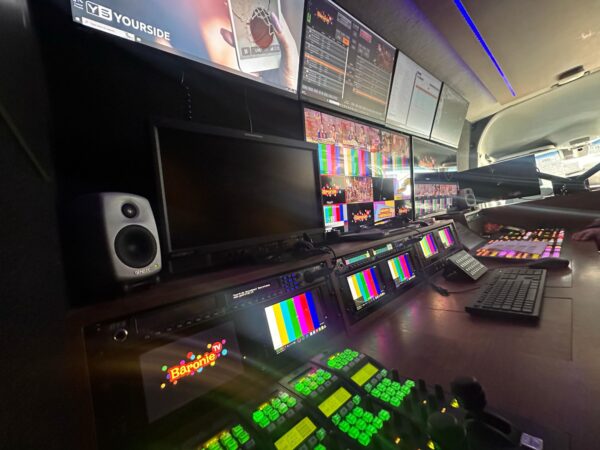

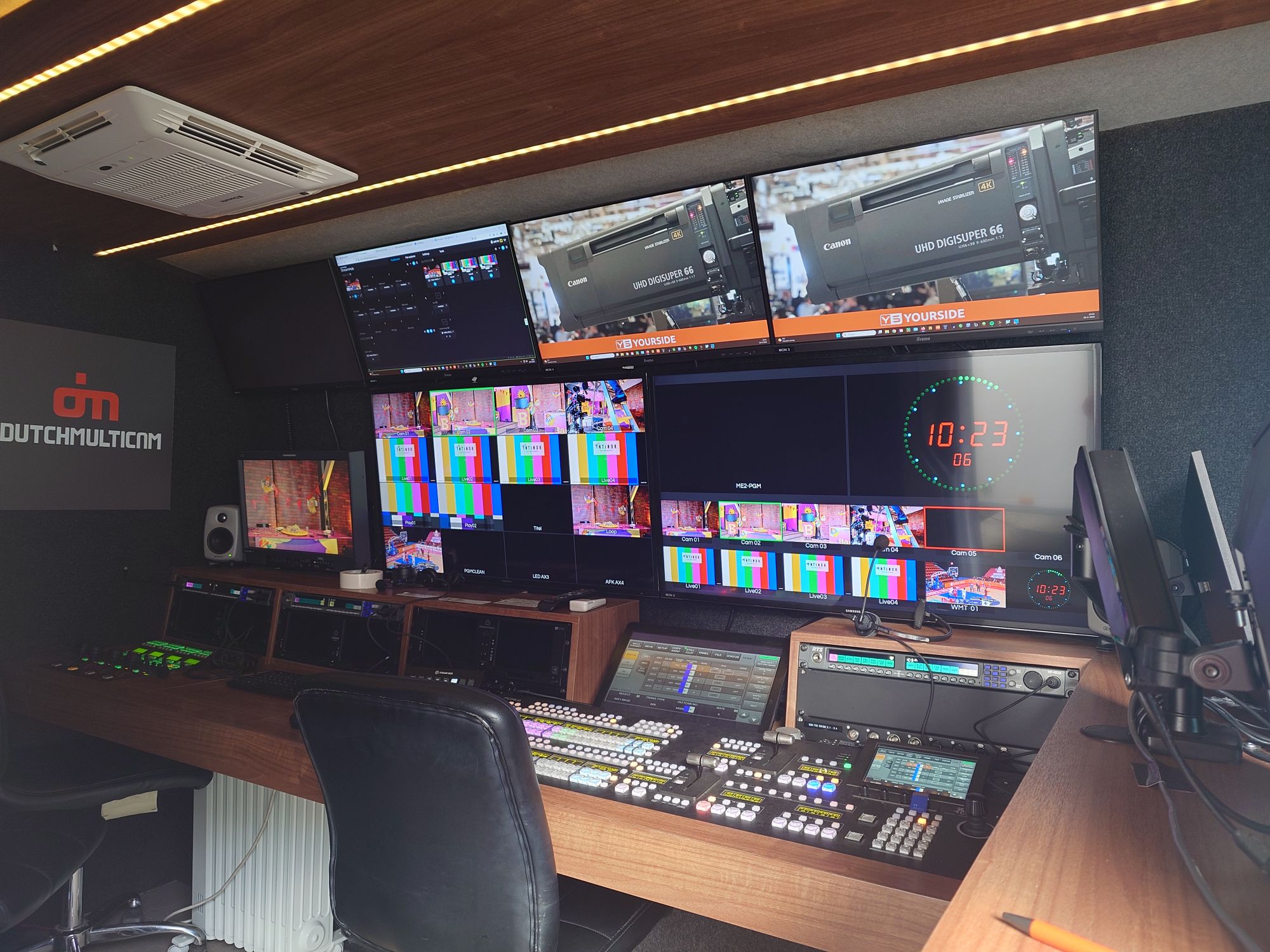

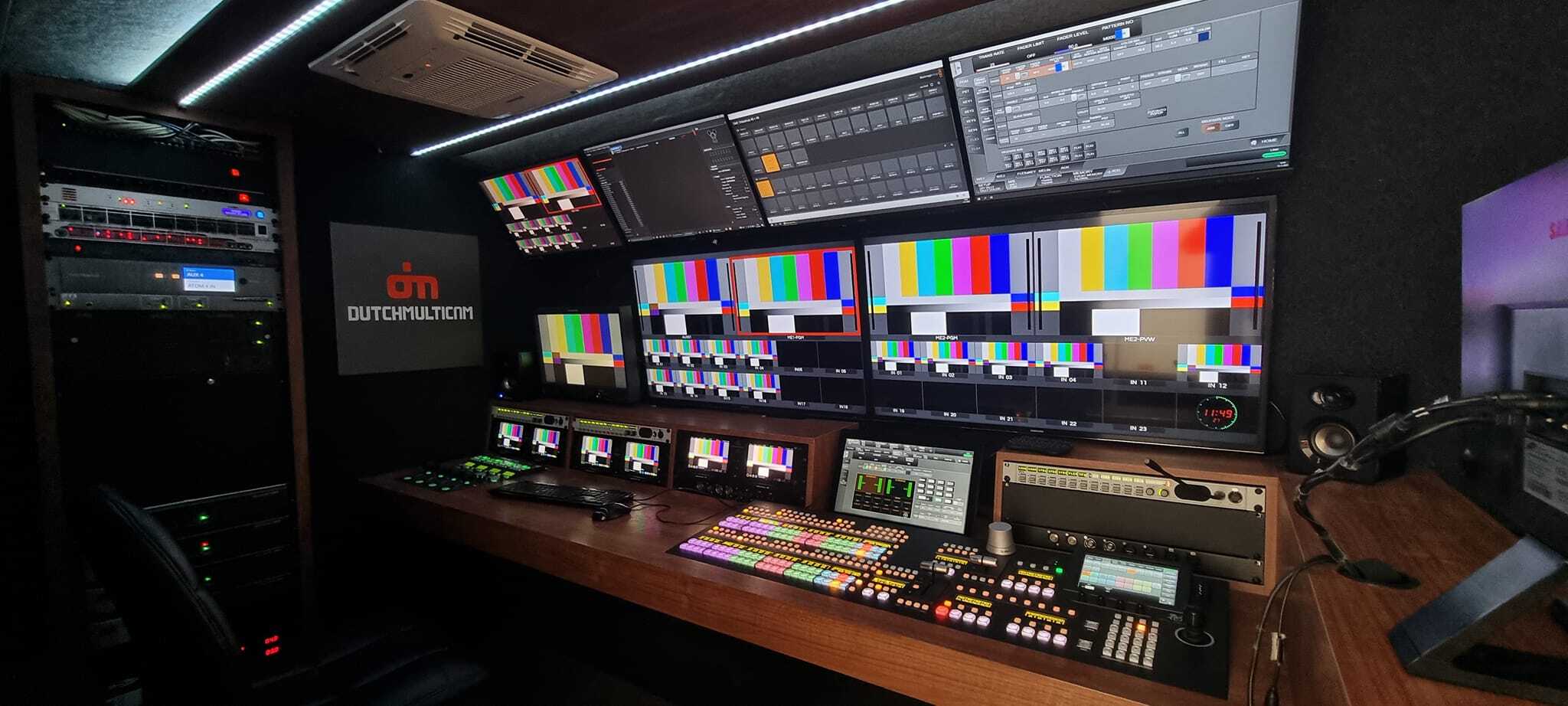

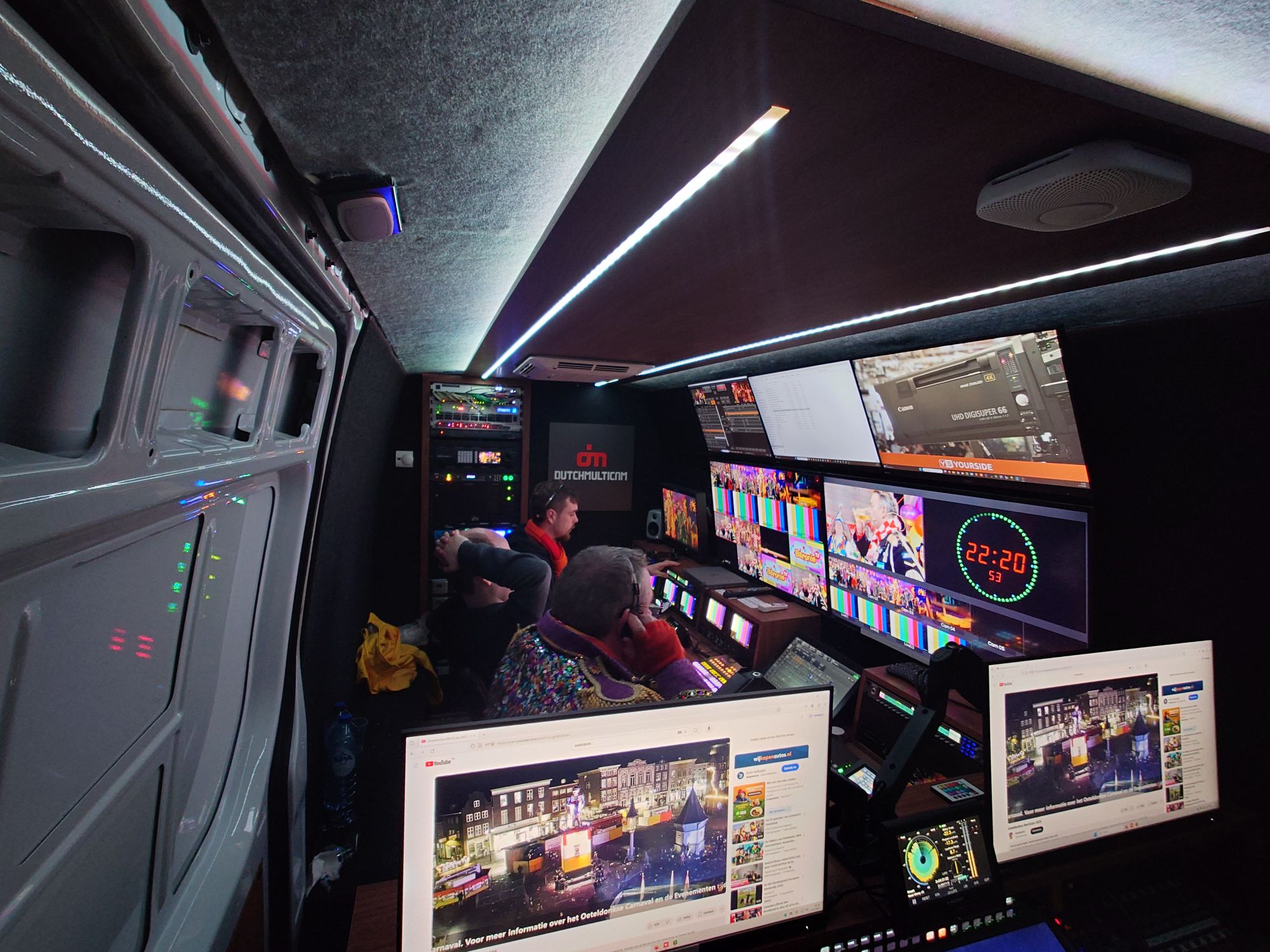

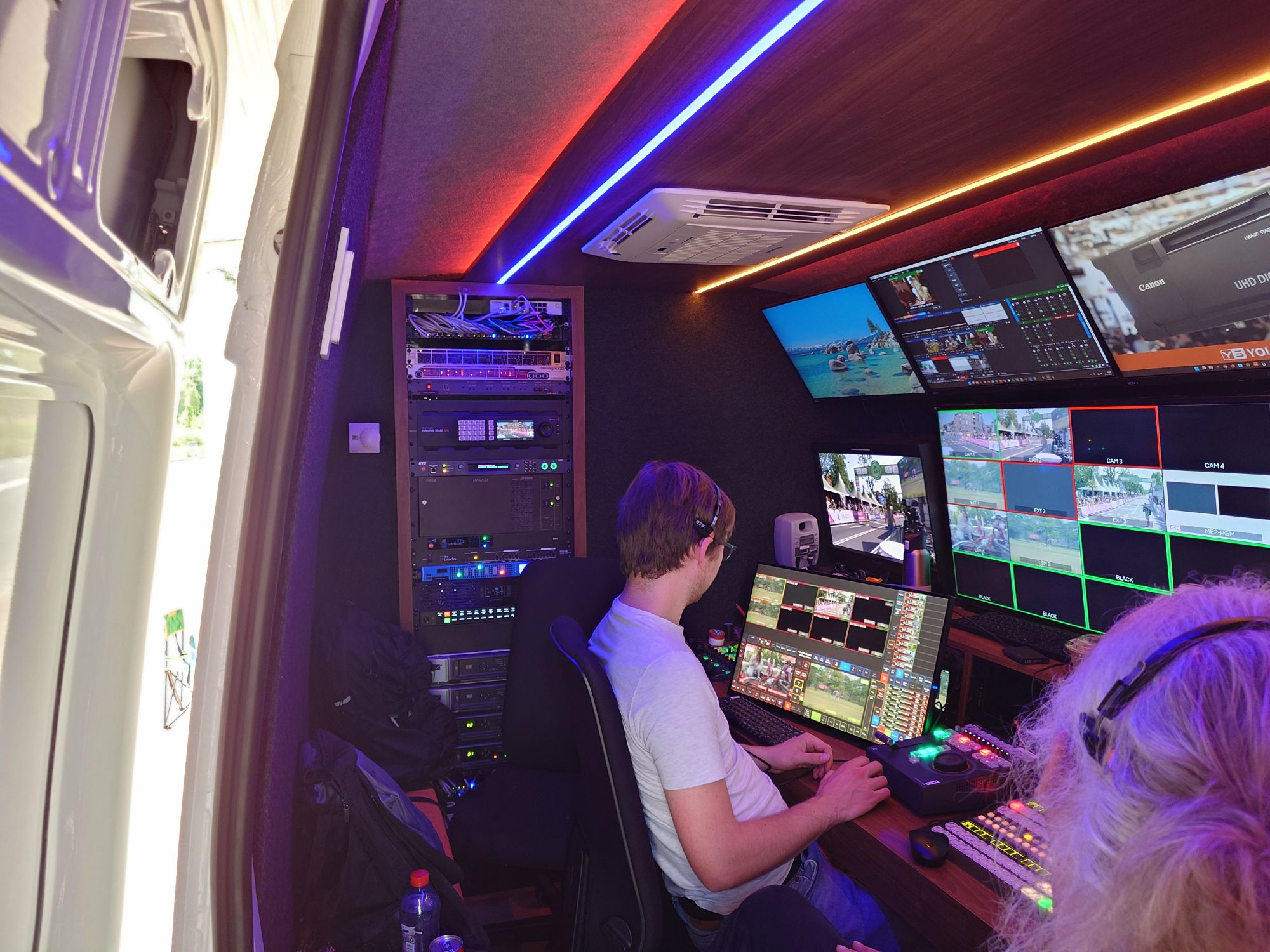

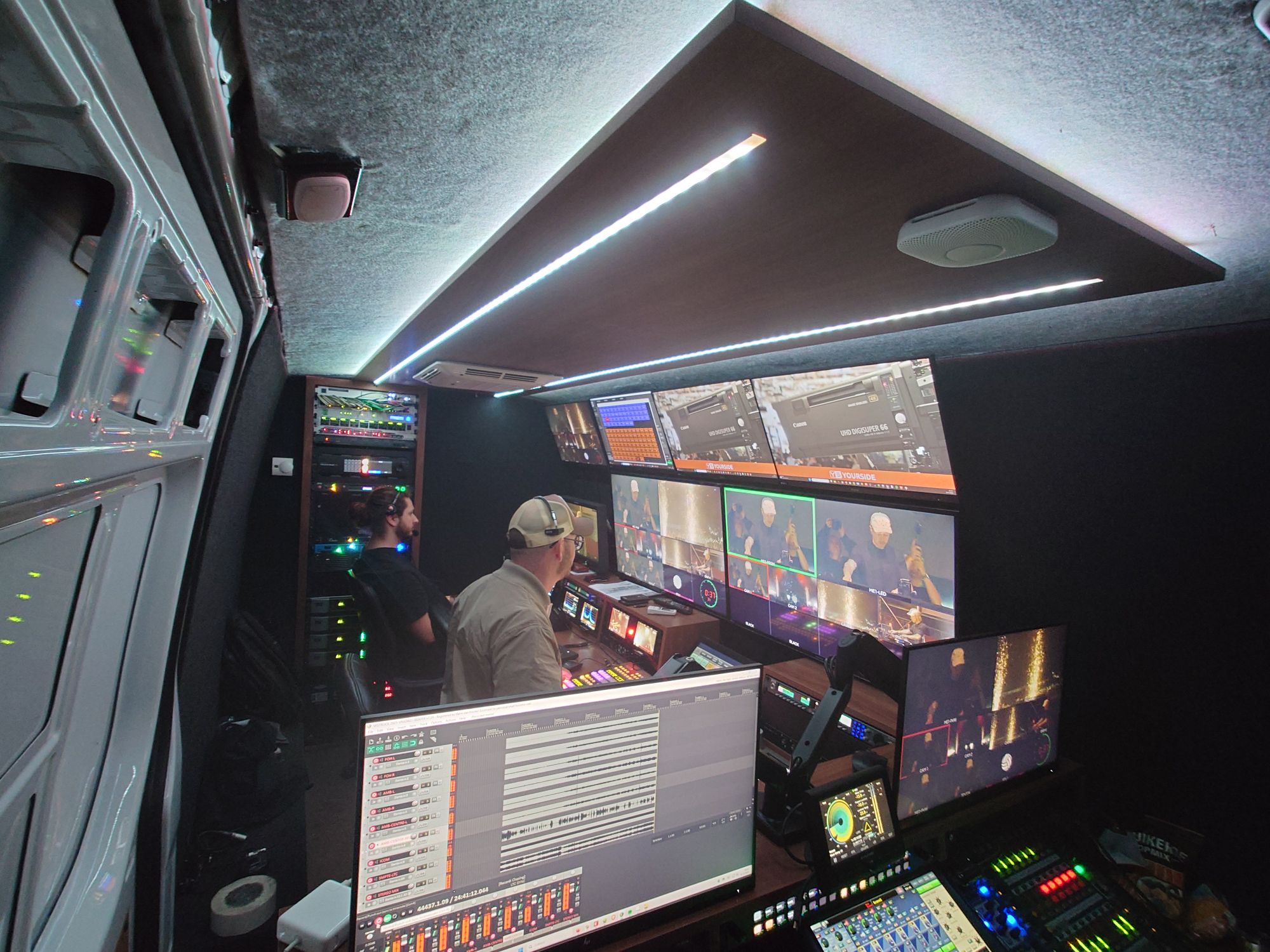

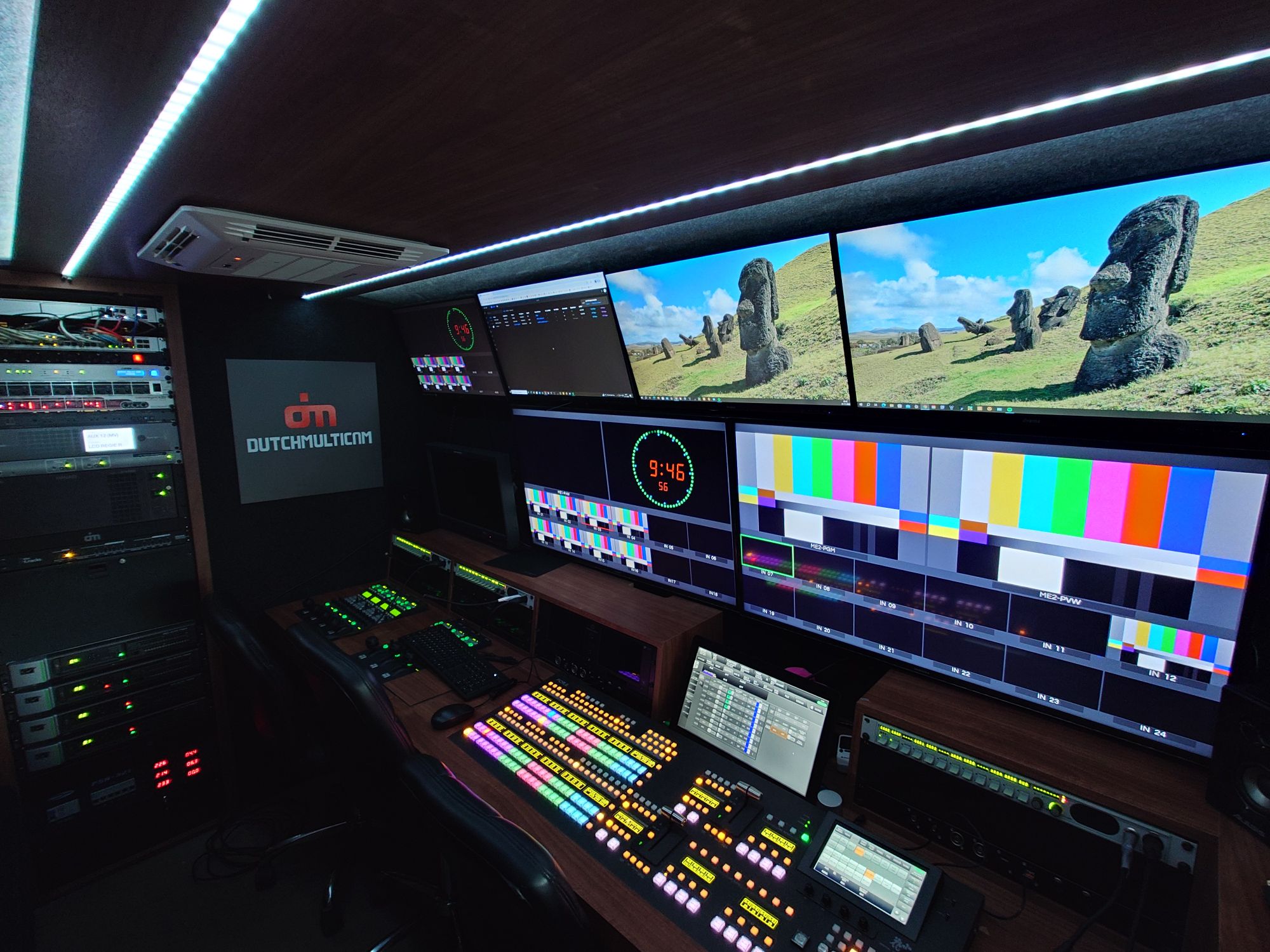

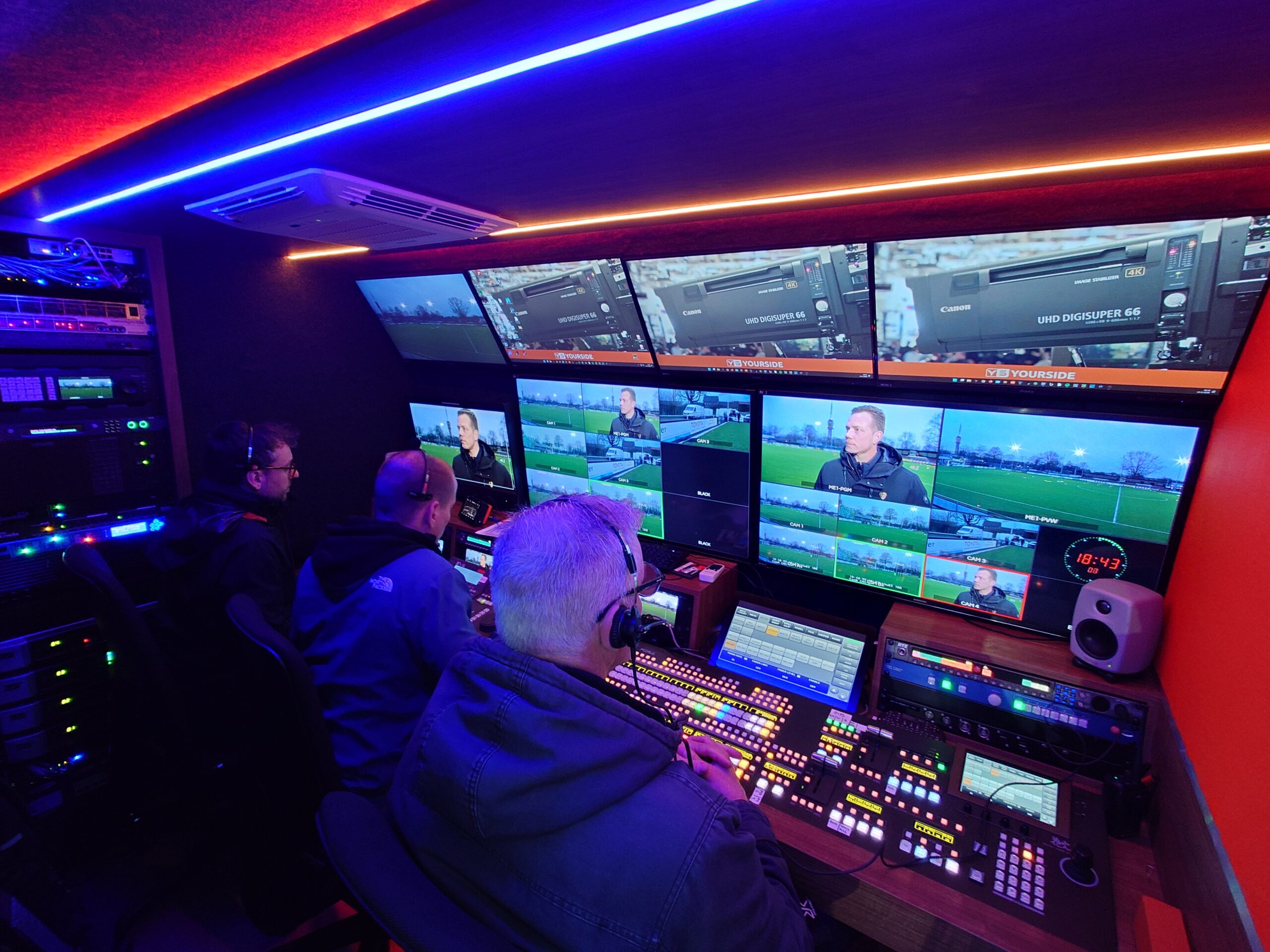

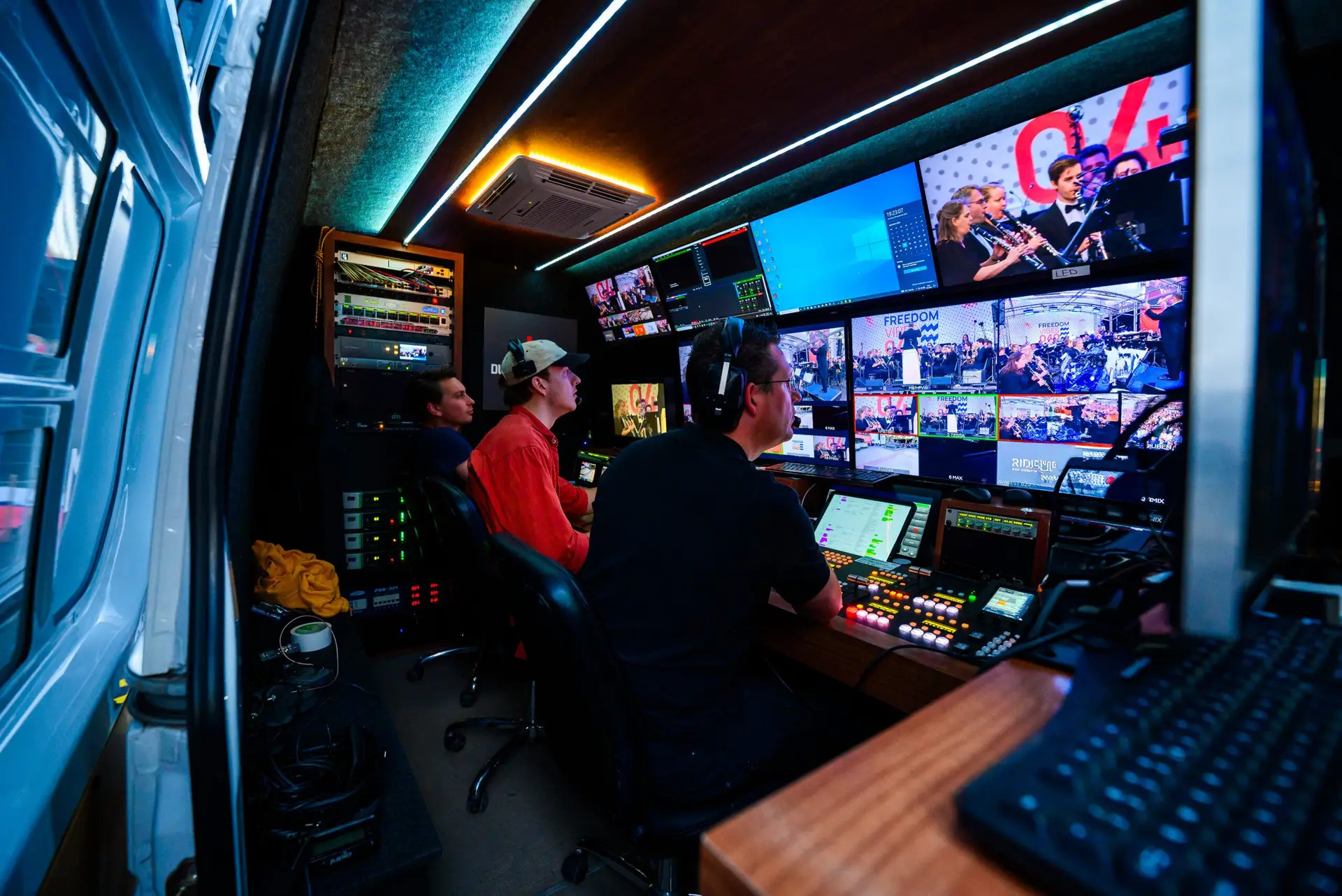

OB Van Overview:
Video:

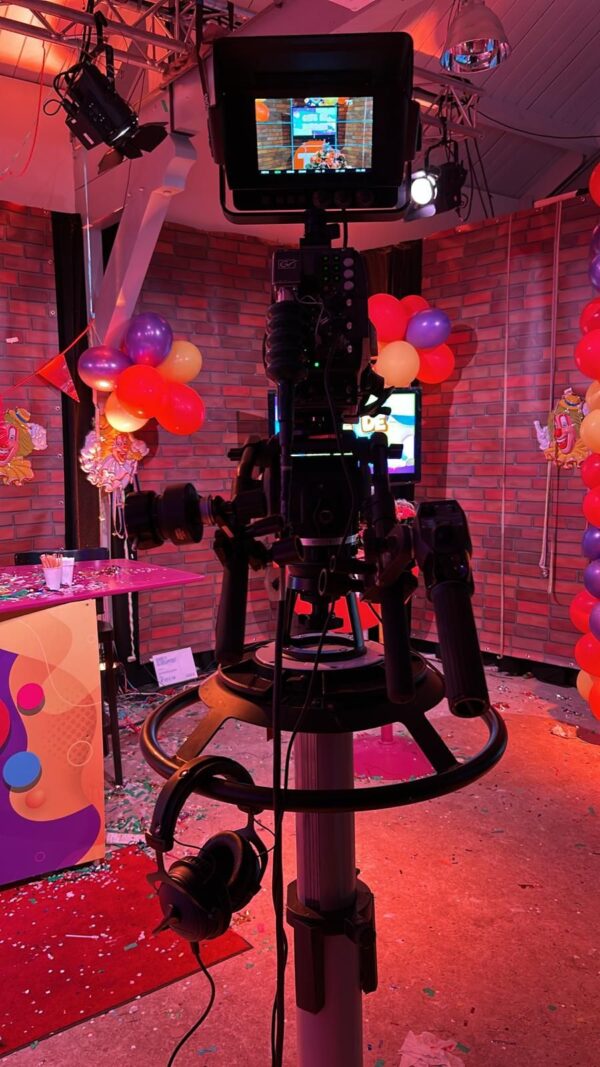

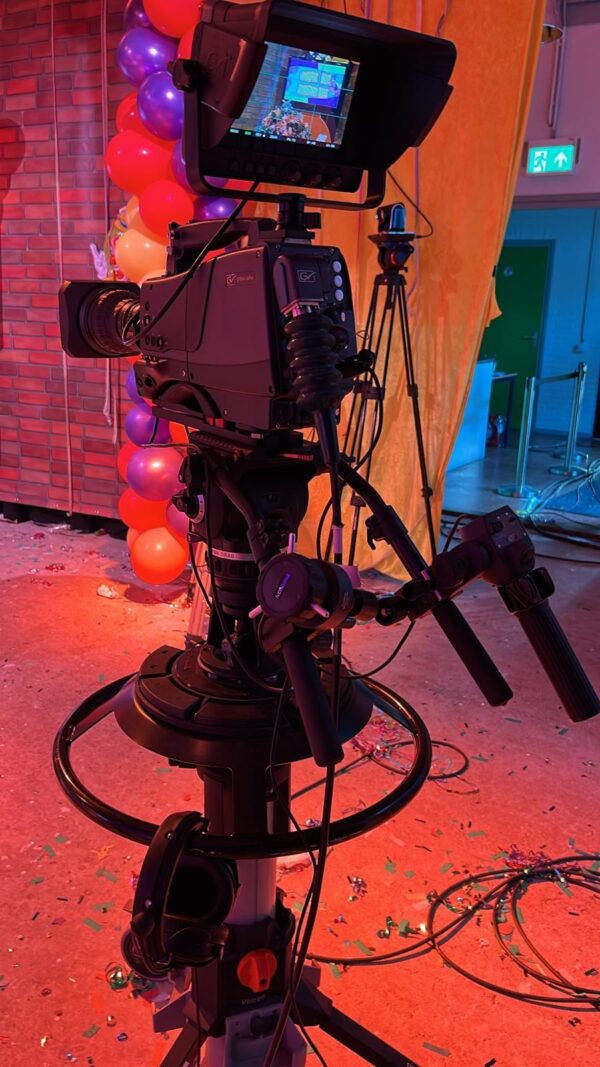

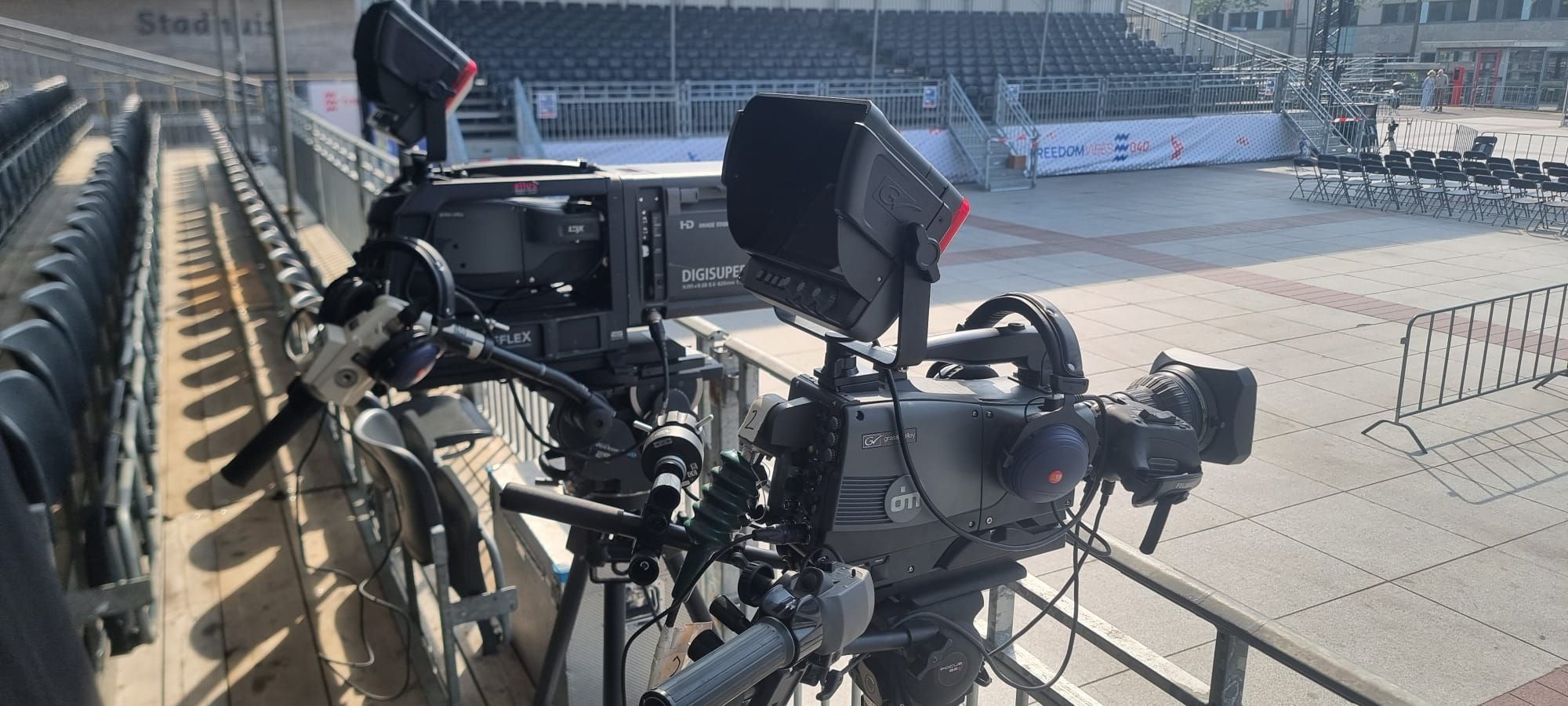

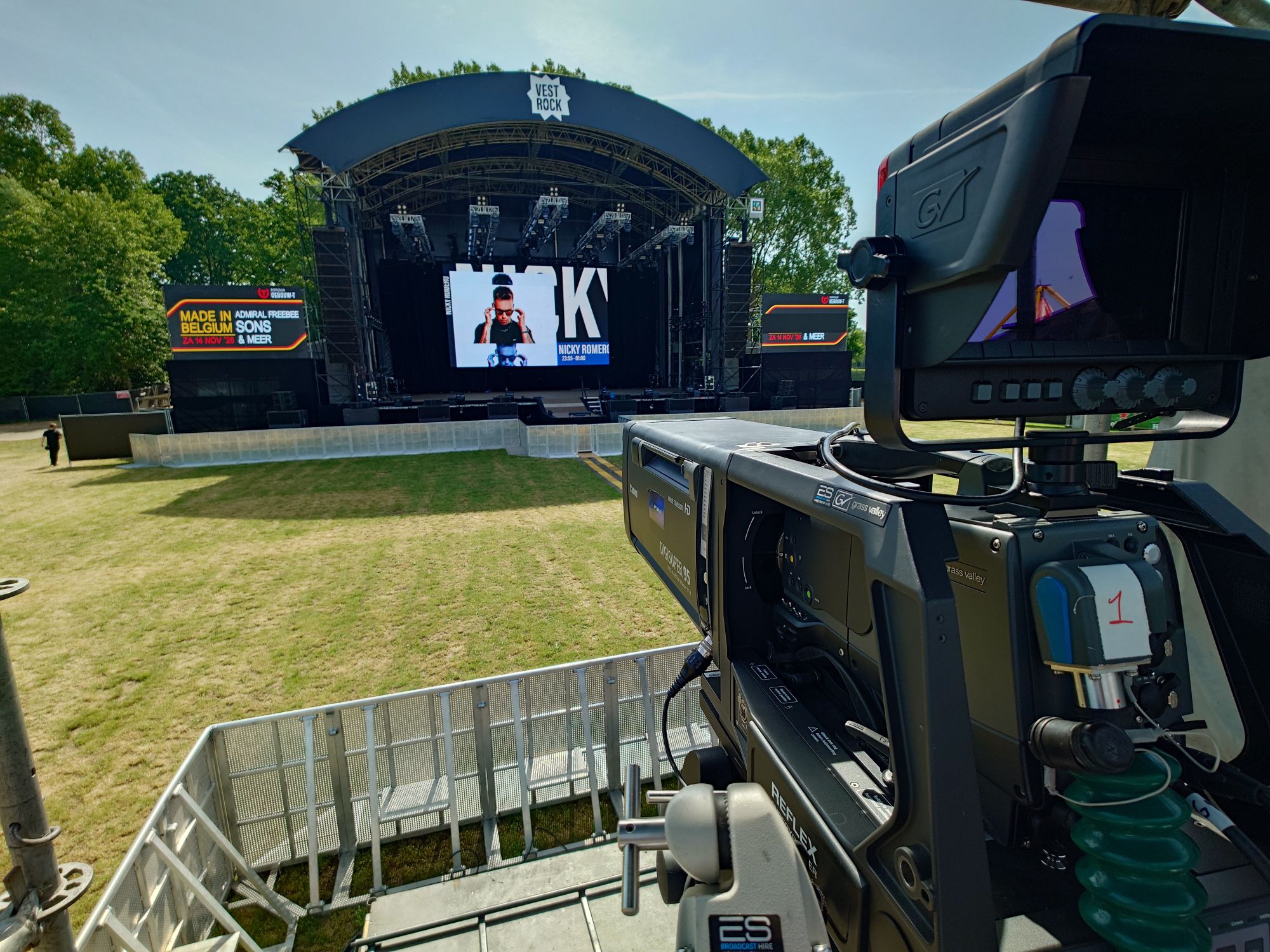

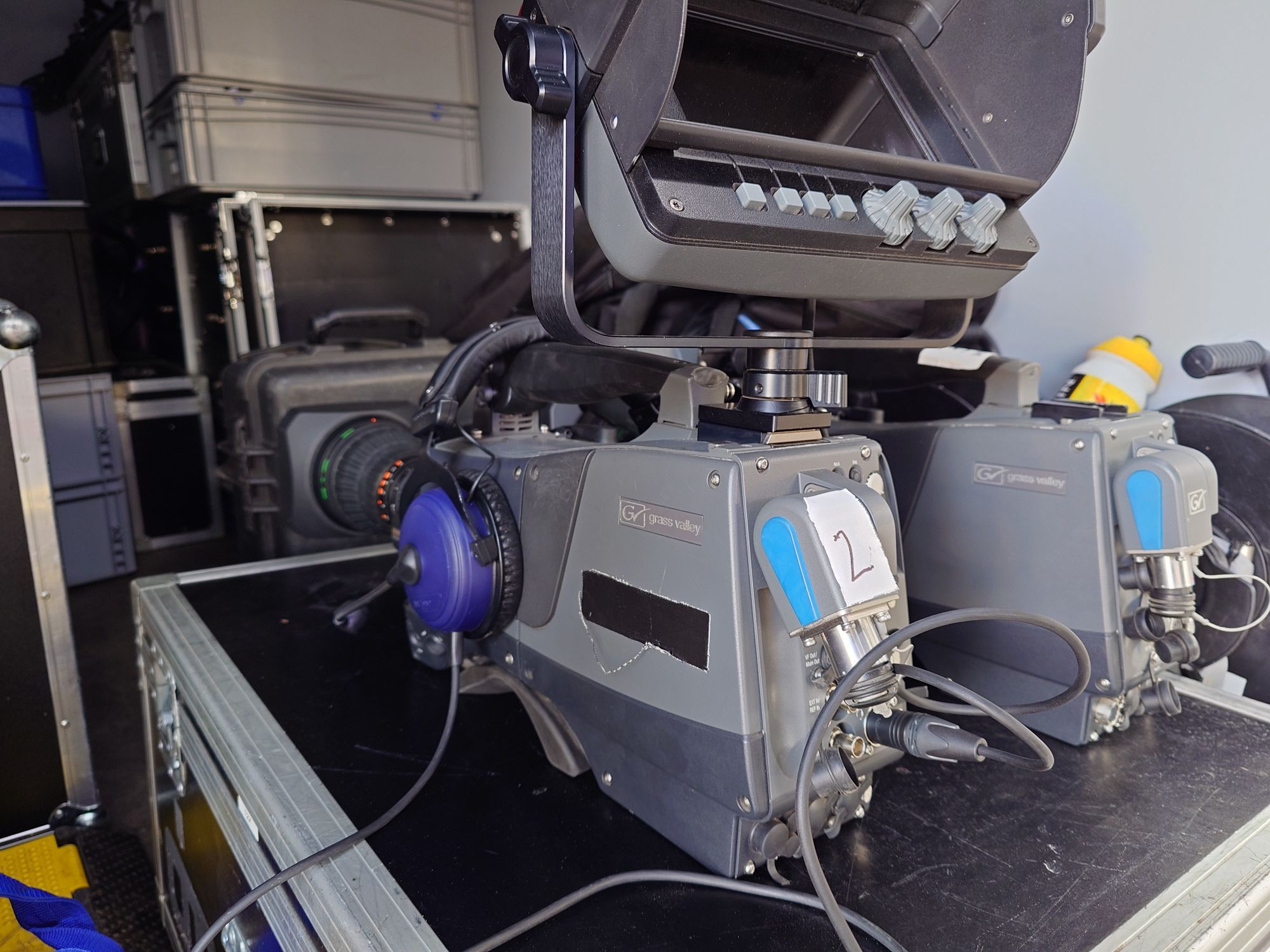

4 x Grass valley LDX80 SMPTE

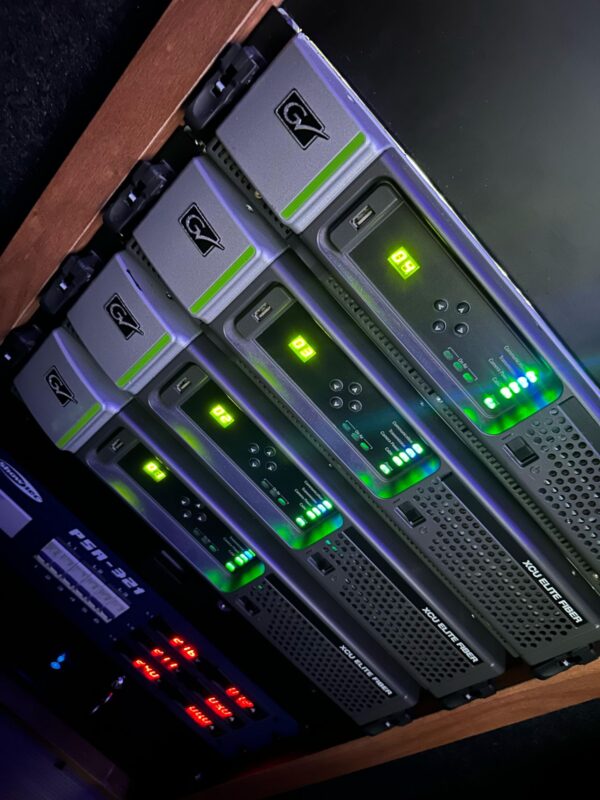

4 x Grass Valley XCU SMPTE
1 x Fujinon 12 x 4.5 HD Wideangle fullservo
1 x Fujinon 23 x 7.8 HD long lens fullservo
2 x Fujinon 17 x 7.8 HD standard lens fullservo
3 x Fujinon fullservo zoom & focus remotes
3 x Grass Valley ENG + 3 x Grass Valley EFP viewfinder

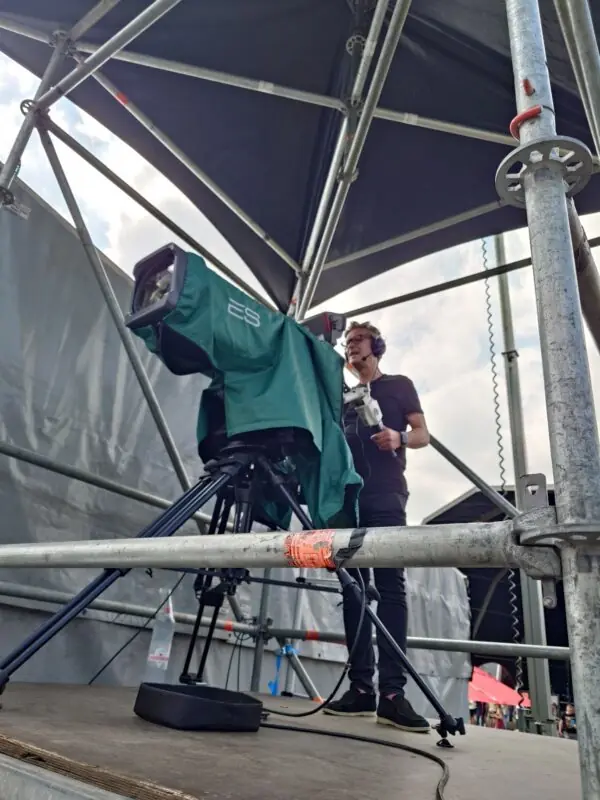

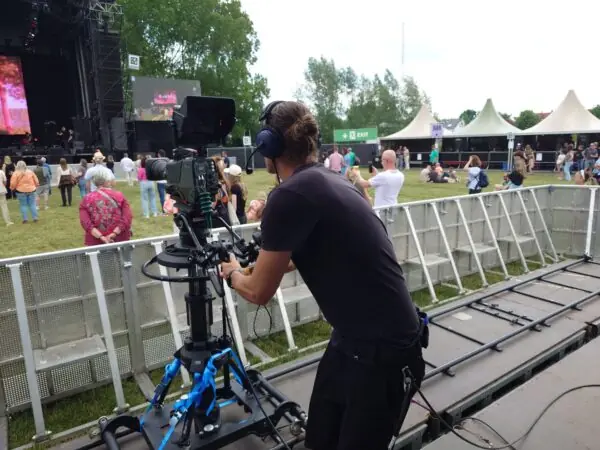

3 x EFP Cartoni Focus 22 tripod system with dolly
1 x Sachtler DV12 SB tripod system

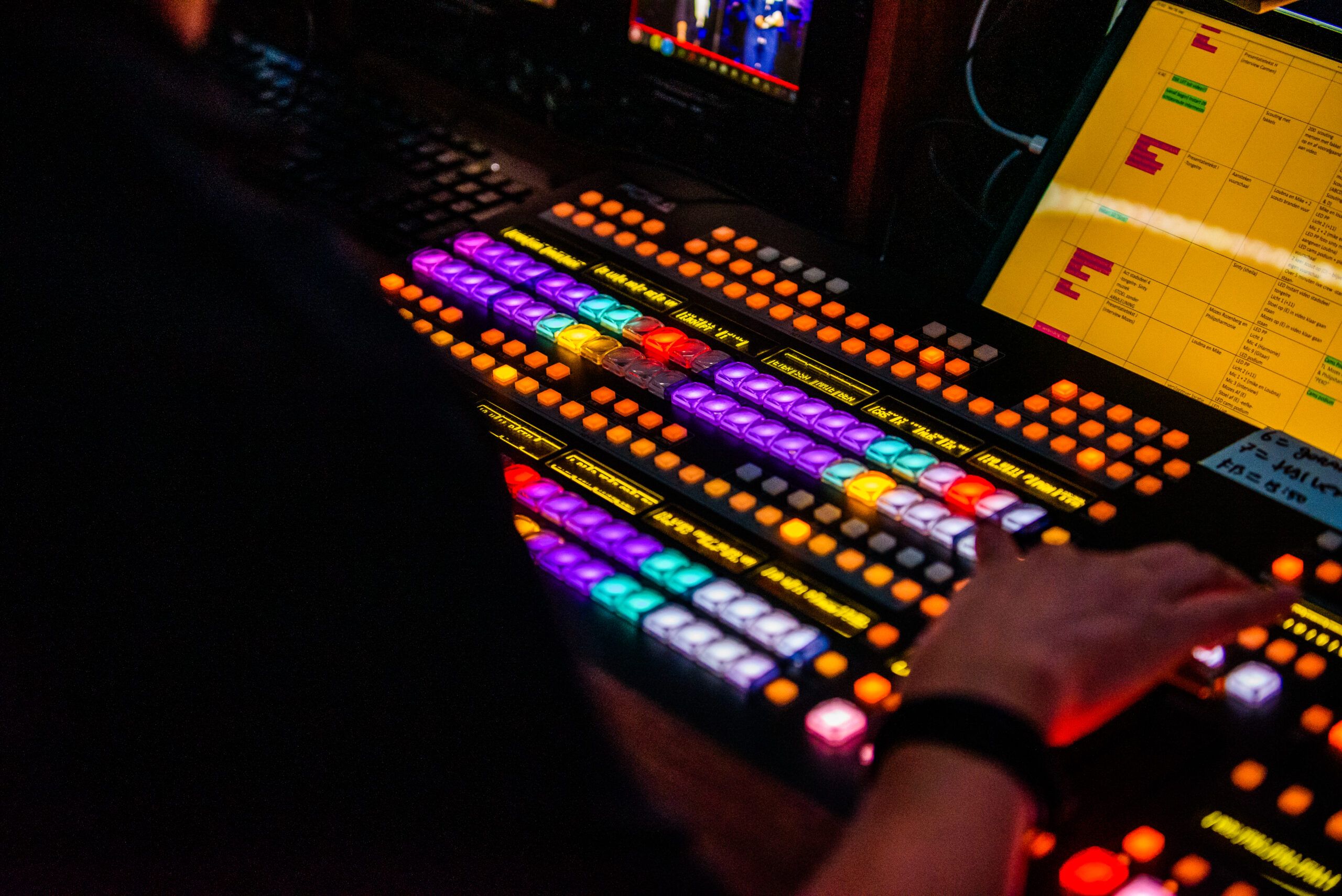

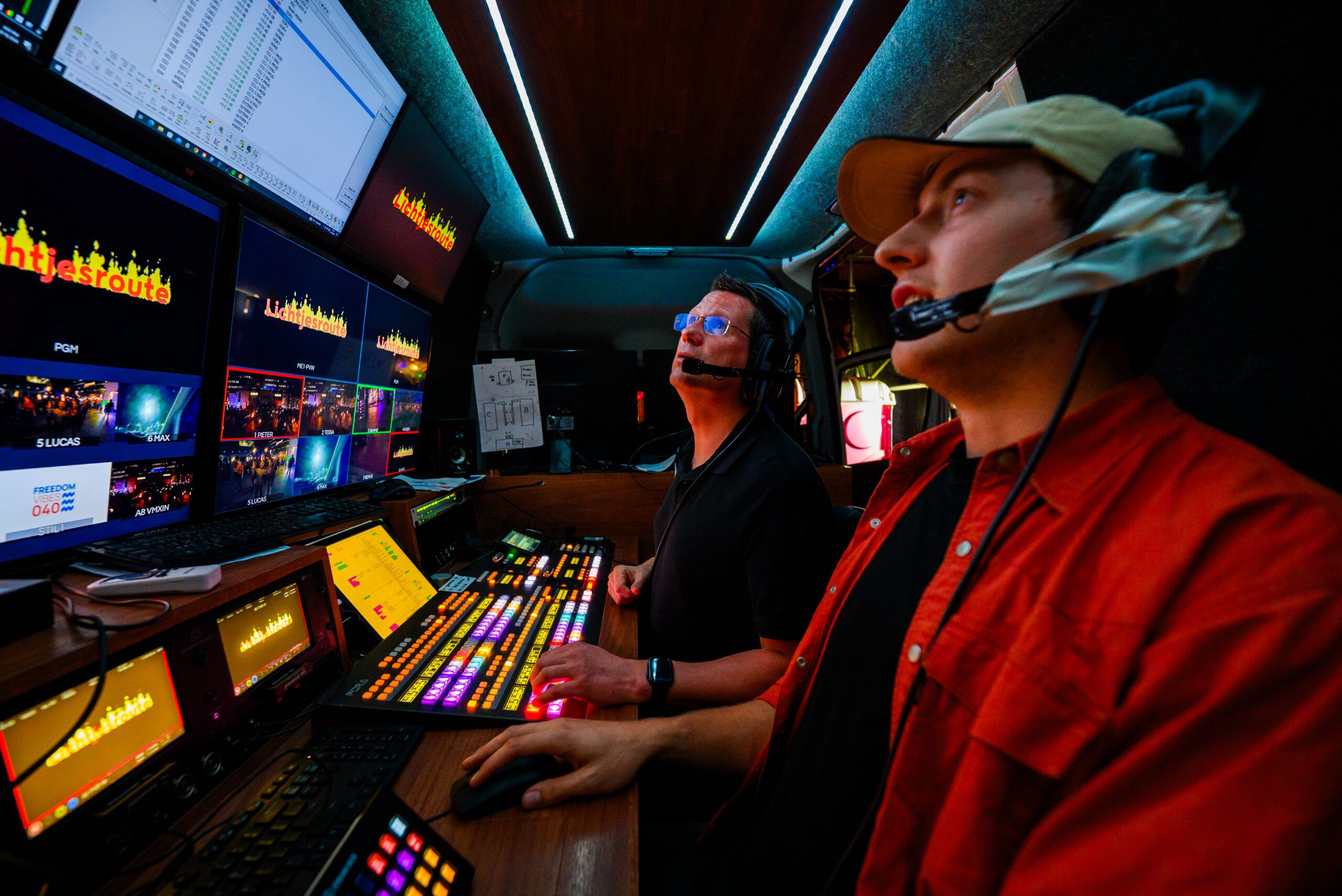

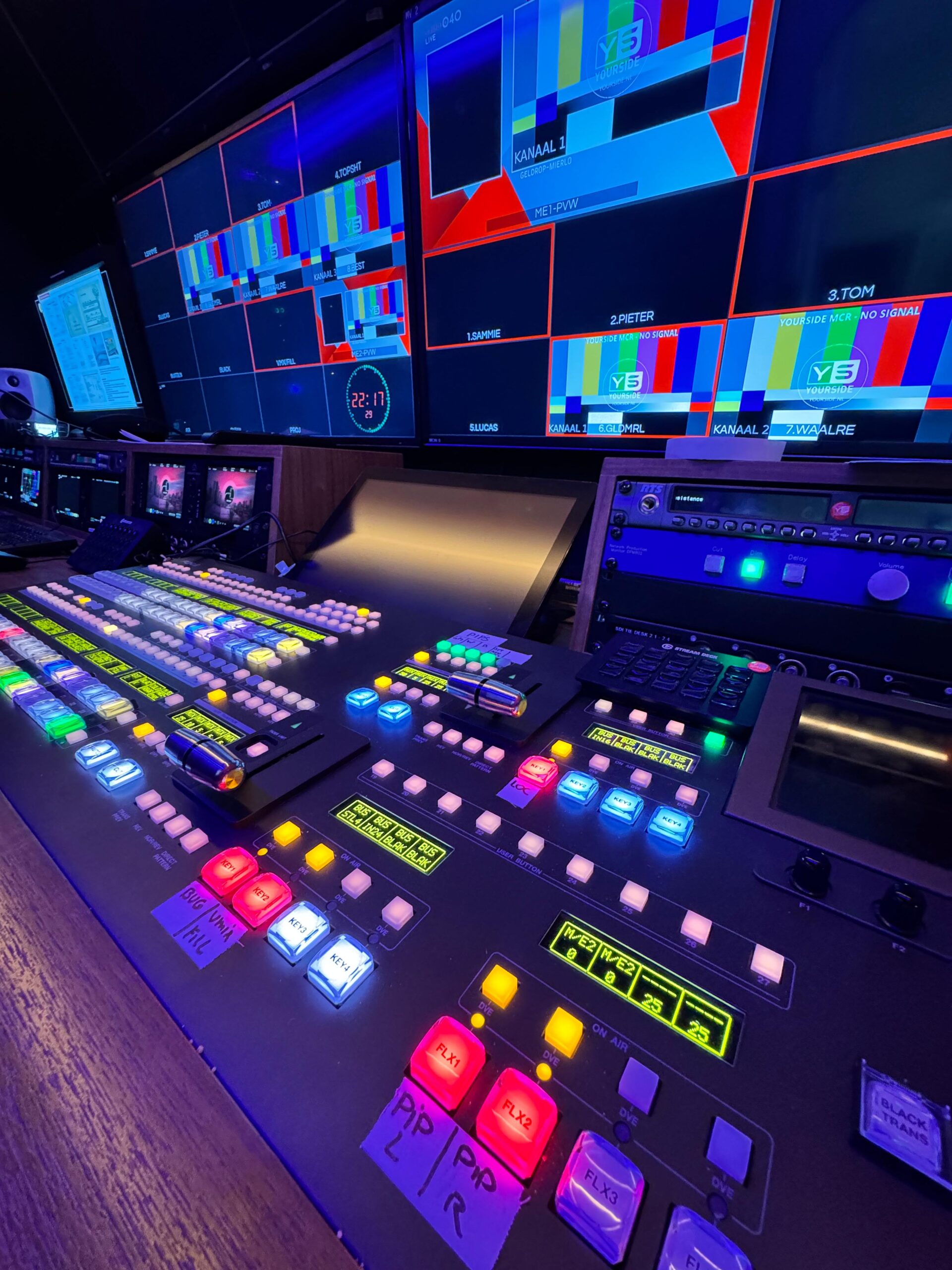

1 x For-A HVS2000 HD-4K Mixer 24 inputs, 18 outputs, 4ME out
1 x For-A HVS2240 2ME HD-4K switcher 2 x 4x key + 4x flexkey

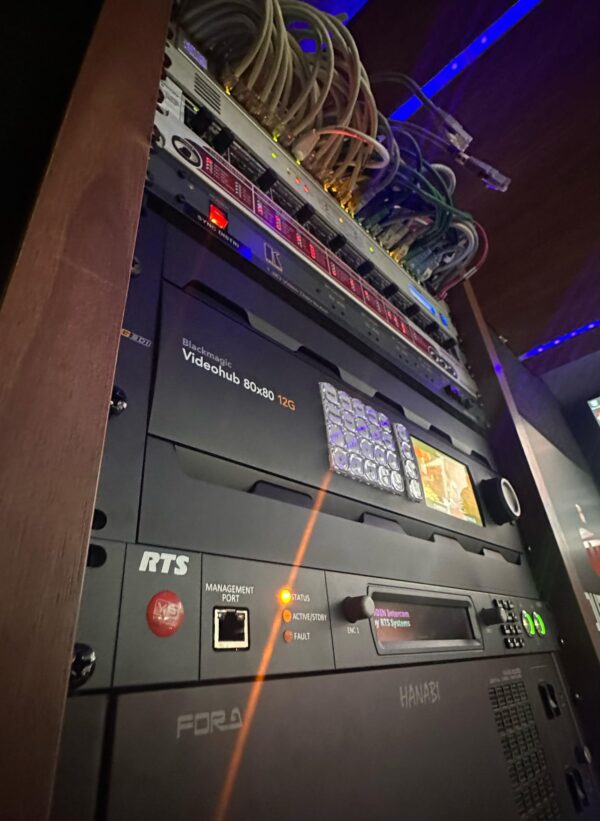

1 x Blackmagic 80X80 Matrix switcher
1 x Blackmagic Quad2 PC met 8 in/out fill and key Caspar CG Custom Graphics solutions possible
     System is licensed with VMIX max allowing for VMIX based Replay and Playdack Playout Software
1 x Blackmagic Studio PC met 1 x in 1 x out HD-SDI

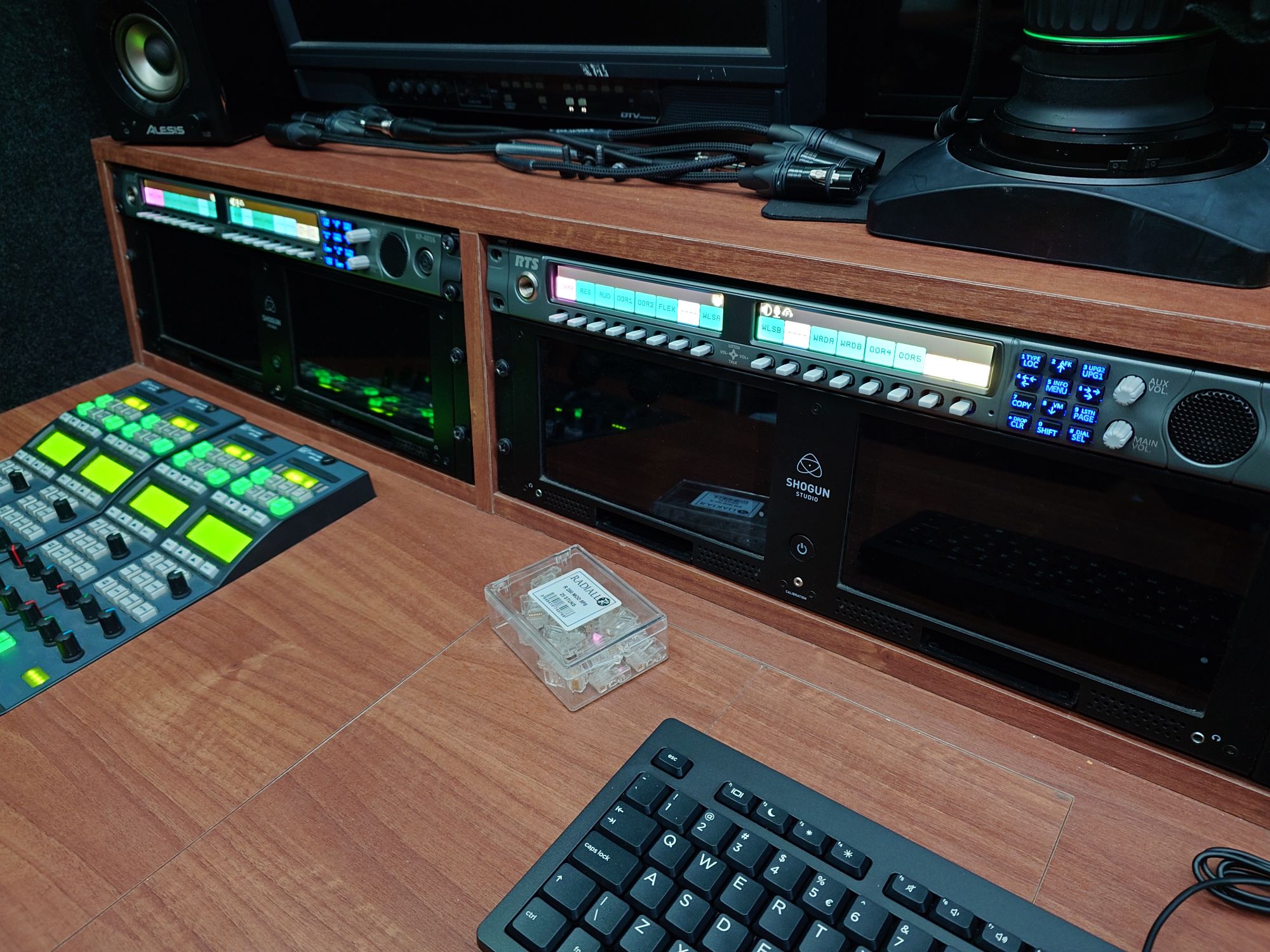

4 x Atomos SSD HD-4K recorders/players

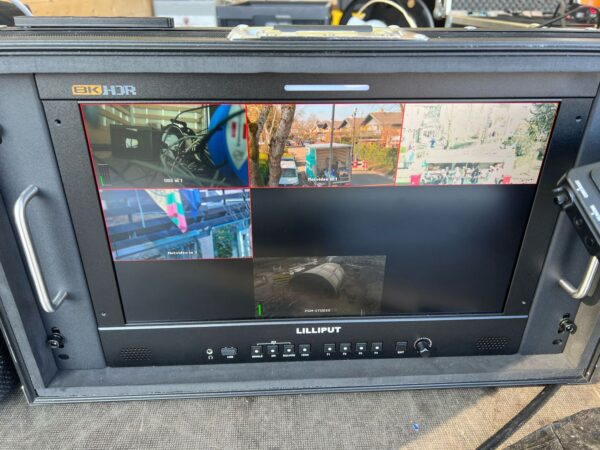

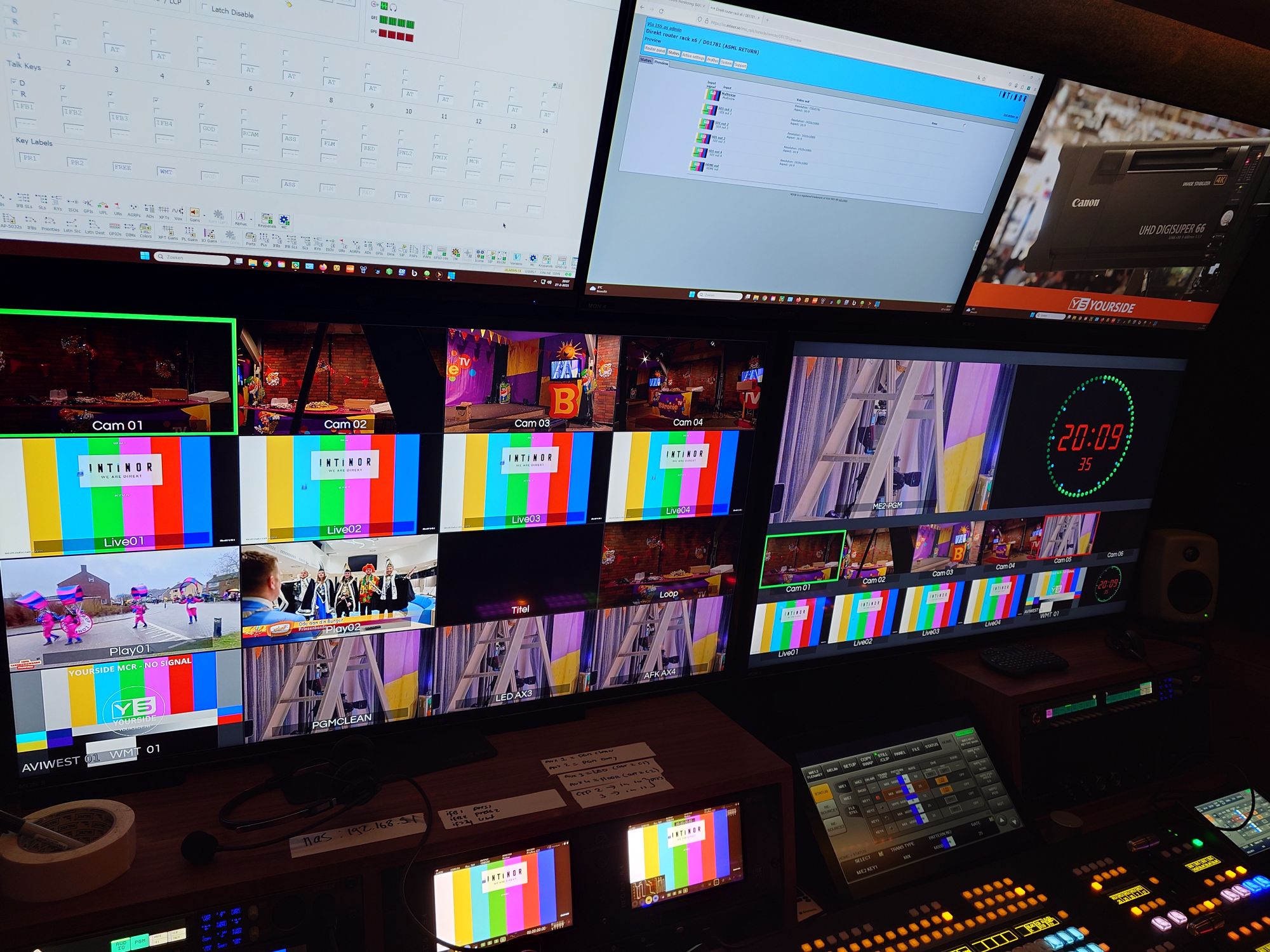

2 x HD-4K Multiview 1mtr diagonal
1 x HD-4K matrix 24”
1 x JVC HD-SDI refrencemonitor 20”

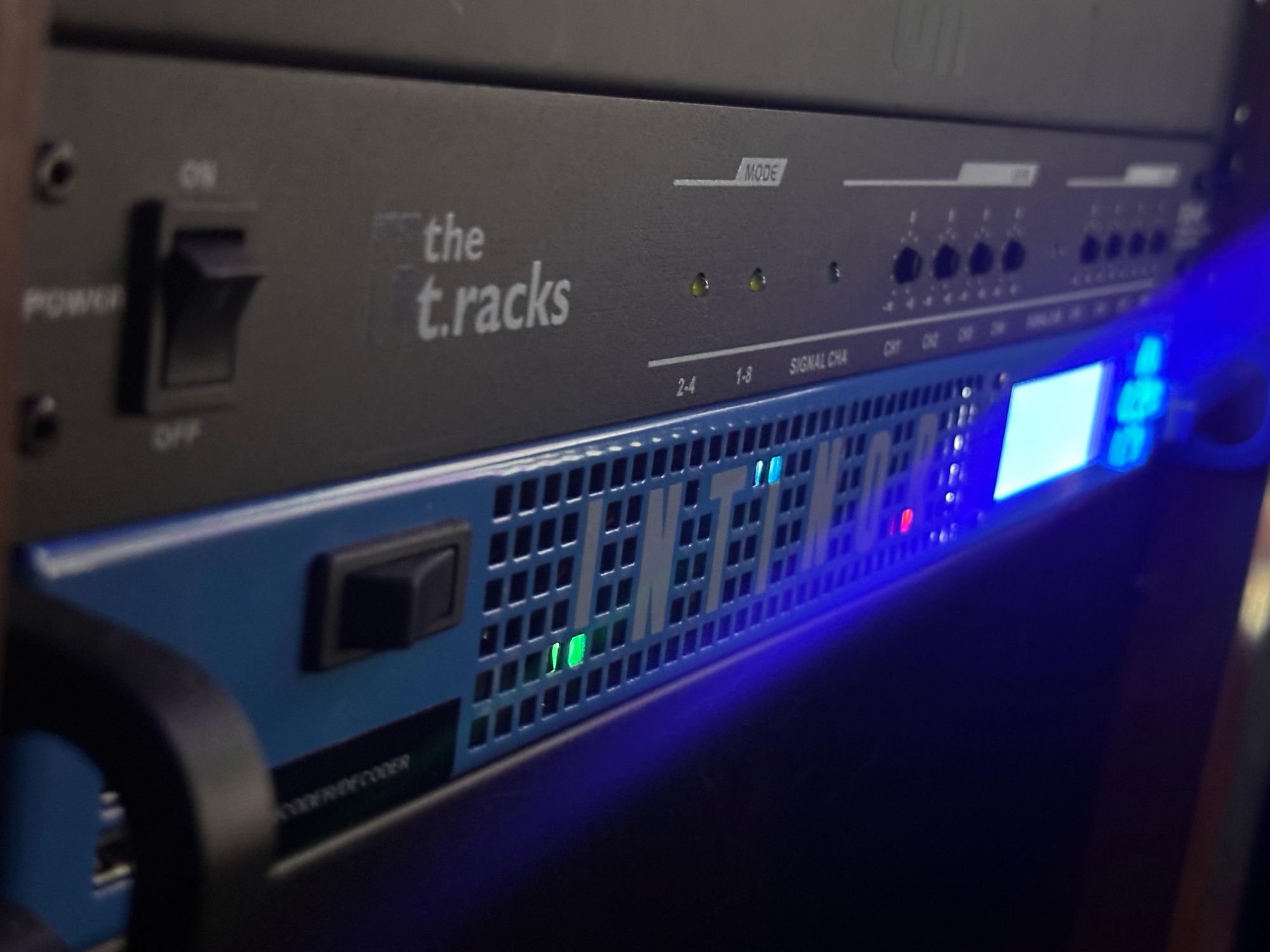

1 x Intinor Direct Router (4 channels of I/O for Stream output or stream input)
Ideal for High end encoding towards SRT and RTMP. This unit can also be used to pull in feeds from multiple sources like SRT and RTMP.
The encoder is full DVB compliant making it possible to send SRT contribution feeds direct from the Van.

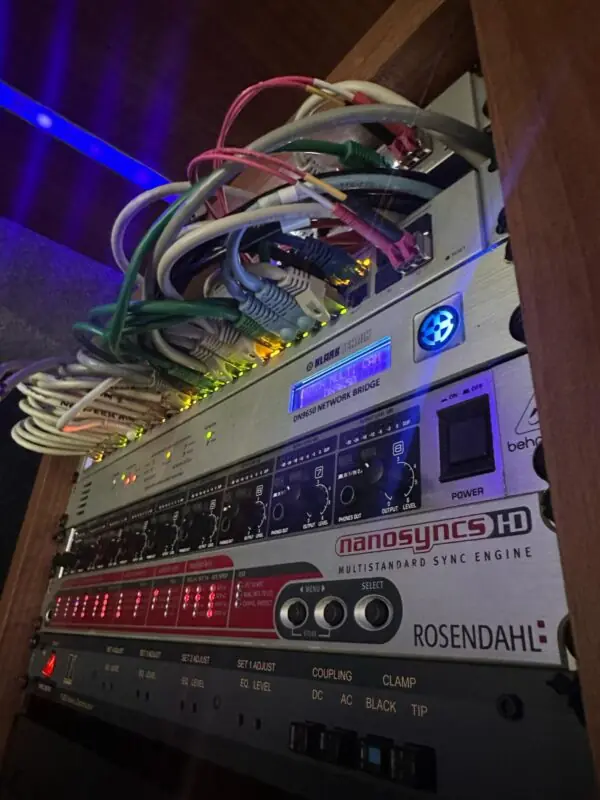

1 x Rosendahl Nanosync timecode-blackburst generator
1 x Streamdeck 32 Button Console

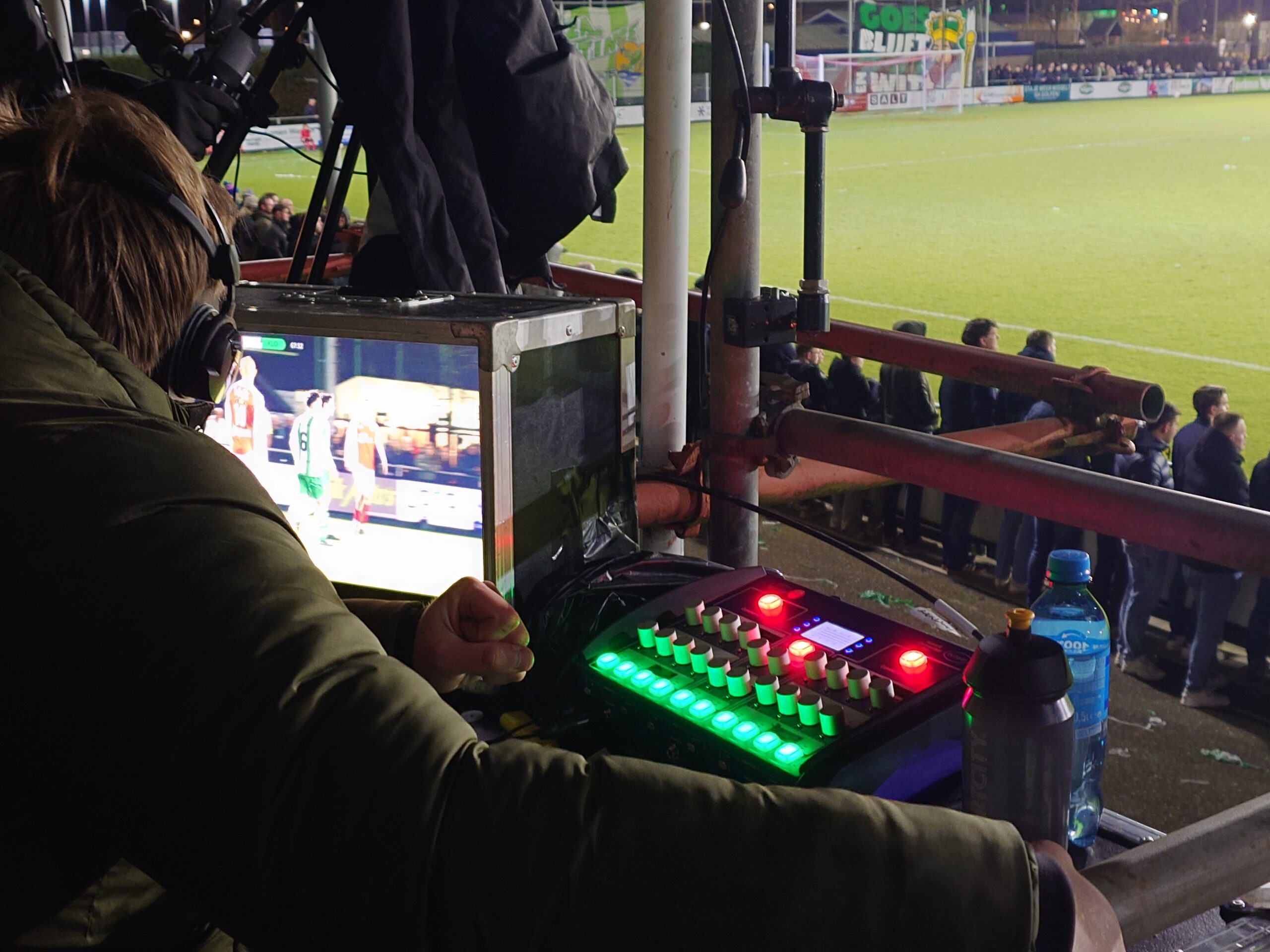

Van can be equipped with EVS Slomotion solutions or Simply-live Slomo Solution for Recording and Replay for sports or Studio Shows.

Audio:

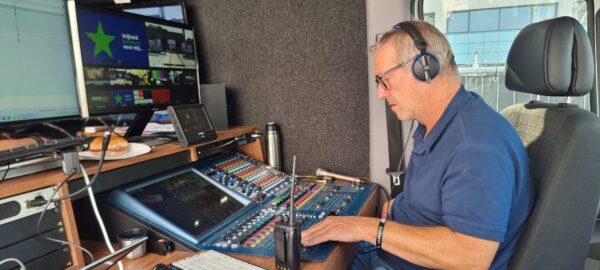

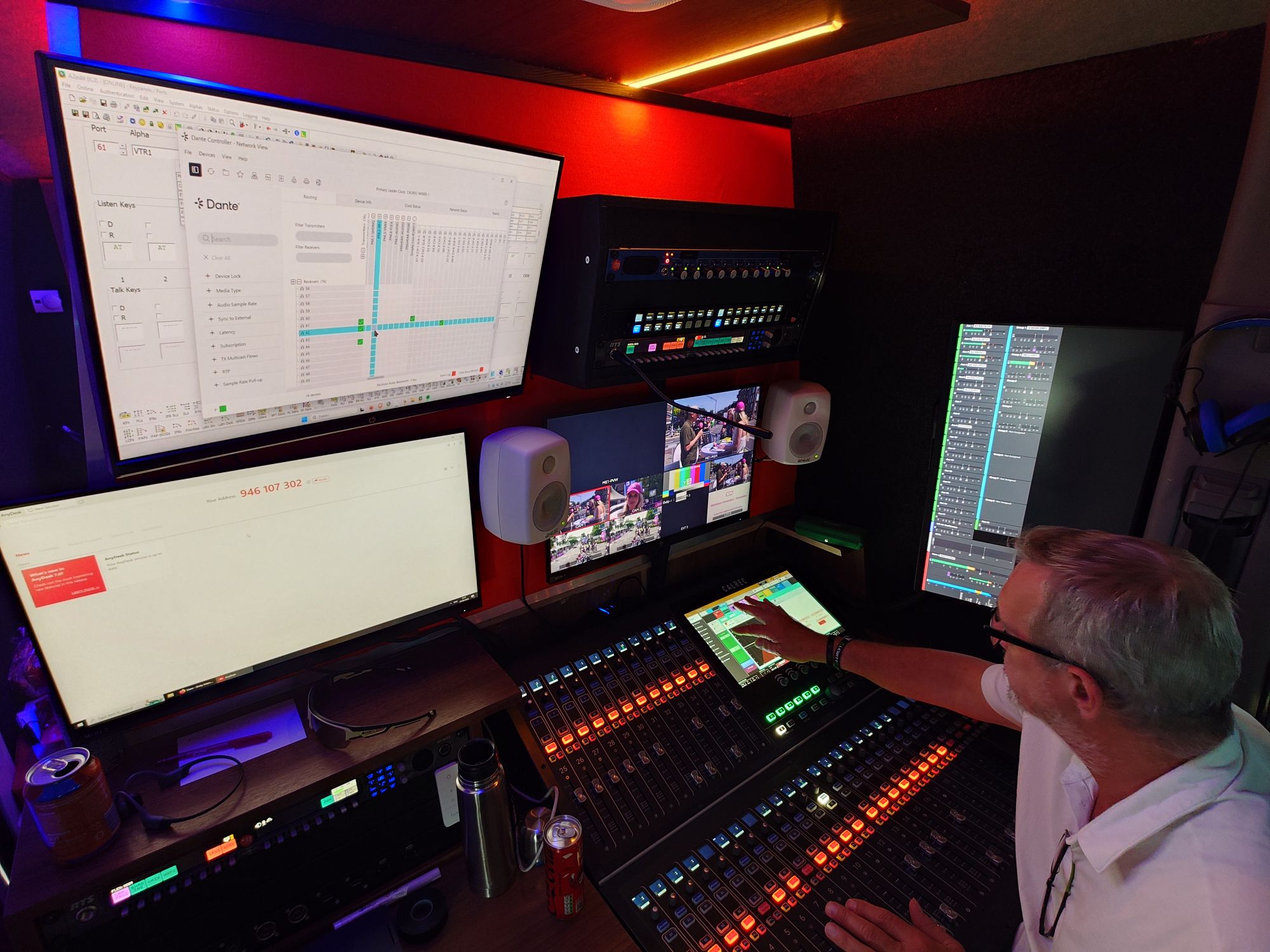

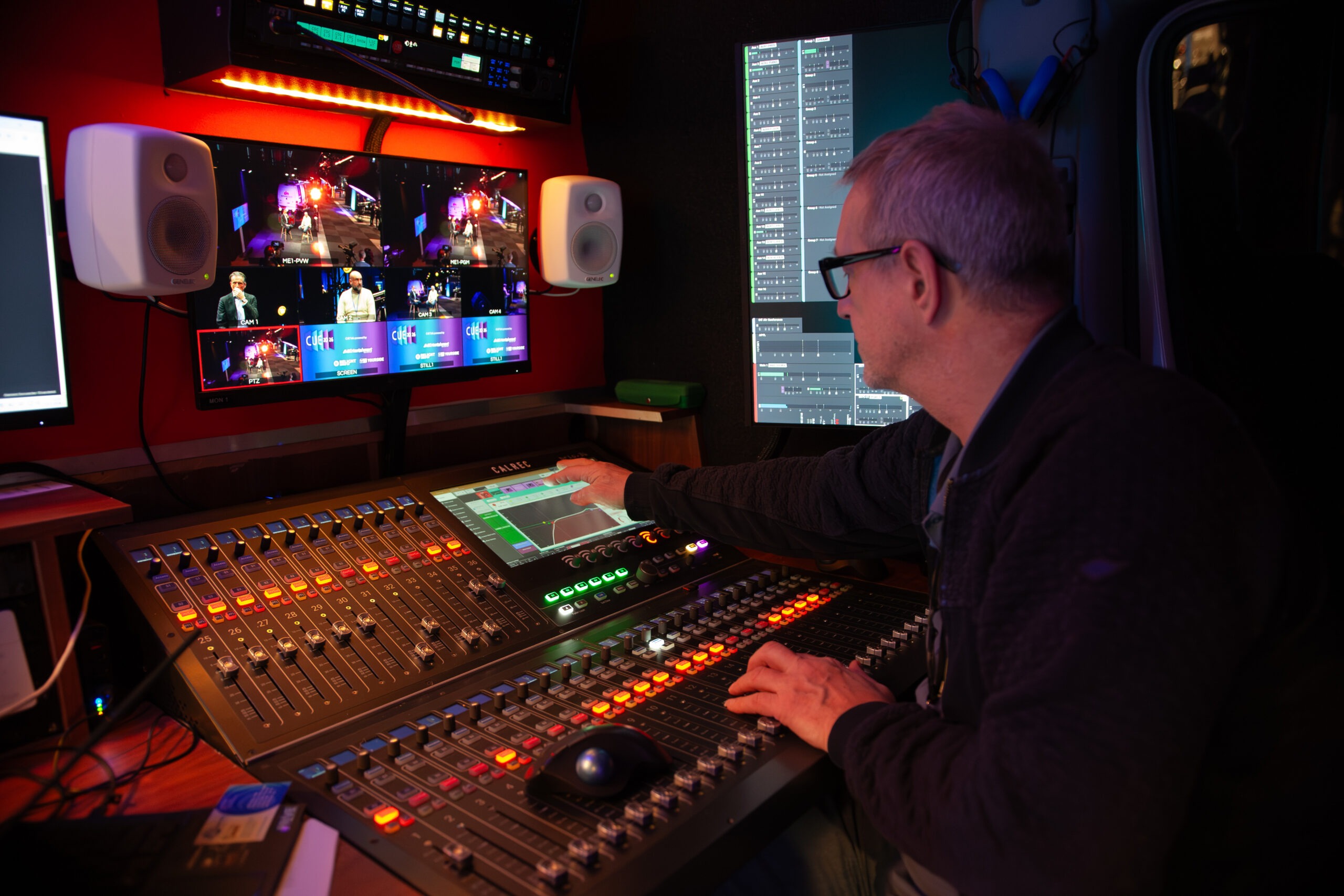

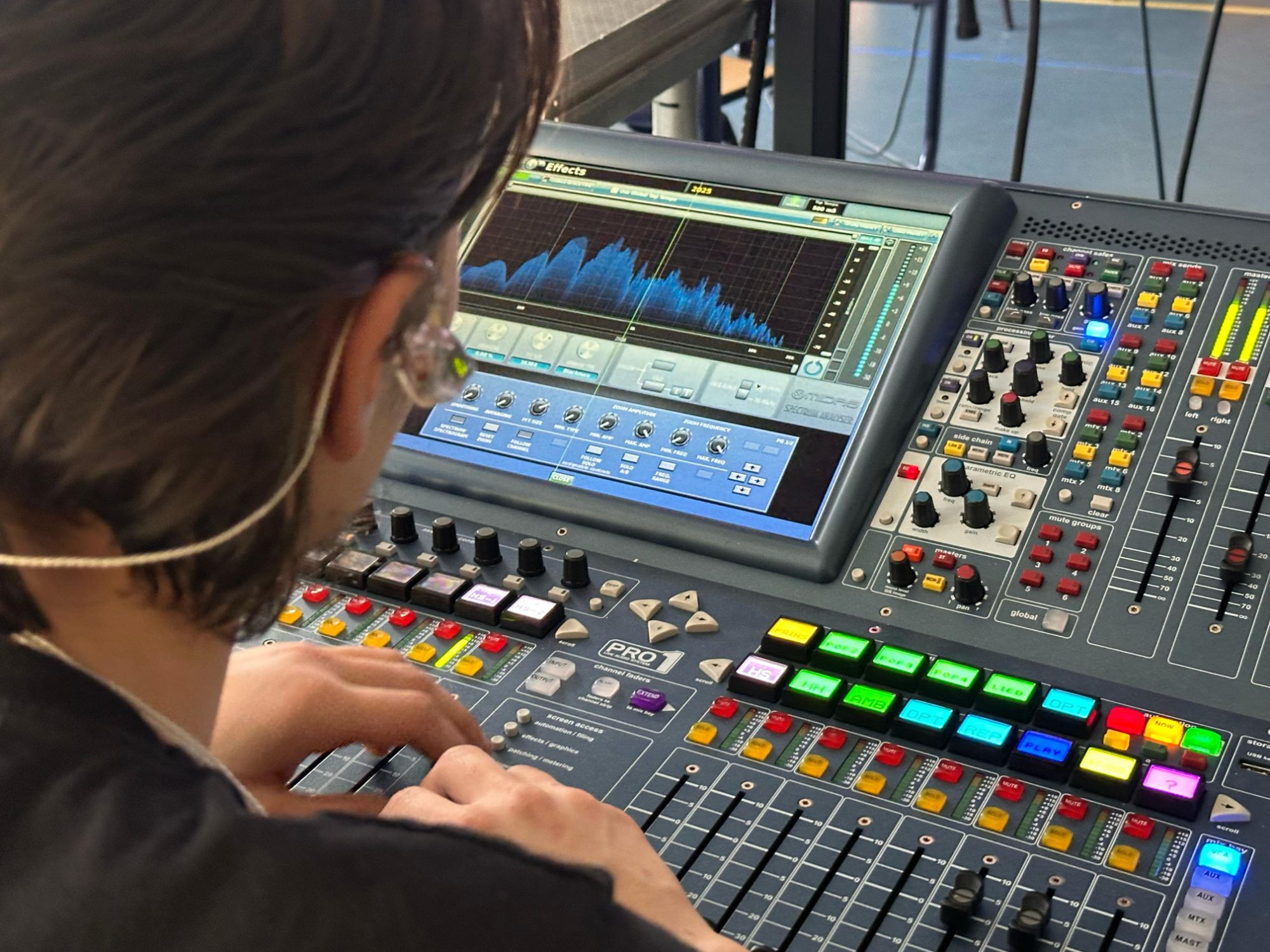

1 x Midas Pro2C mixer 64 channels x 27 bus 2 x AES in 3 x AES out
1 x Midas DL231 Stagebox 24 in 24 out 2 x AES50
1 x Midas DL153 Stagebox 16 in 8 out 2 x AES50

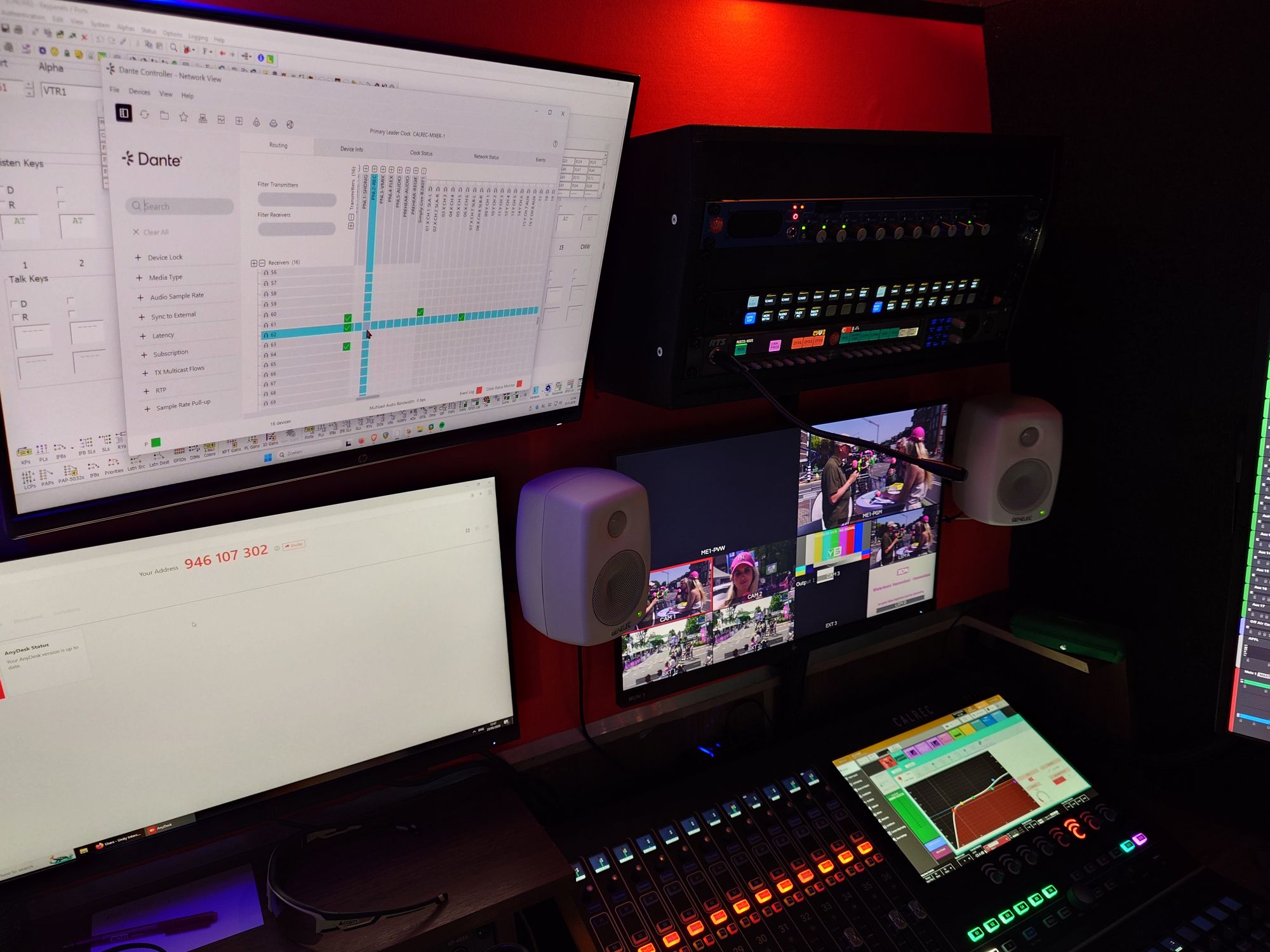

1 x Klark Technk DN9650 Network Bridge to DANTE
1 x PC For multi-track recording (Reaper)
2 x Alesis audio-monitor, LUFS Monitoring

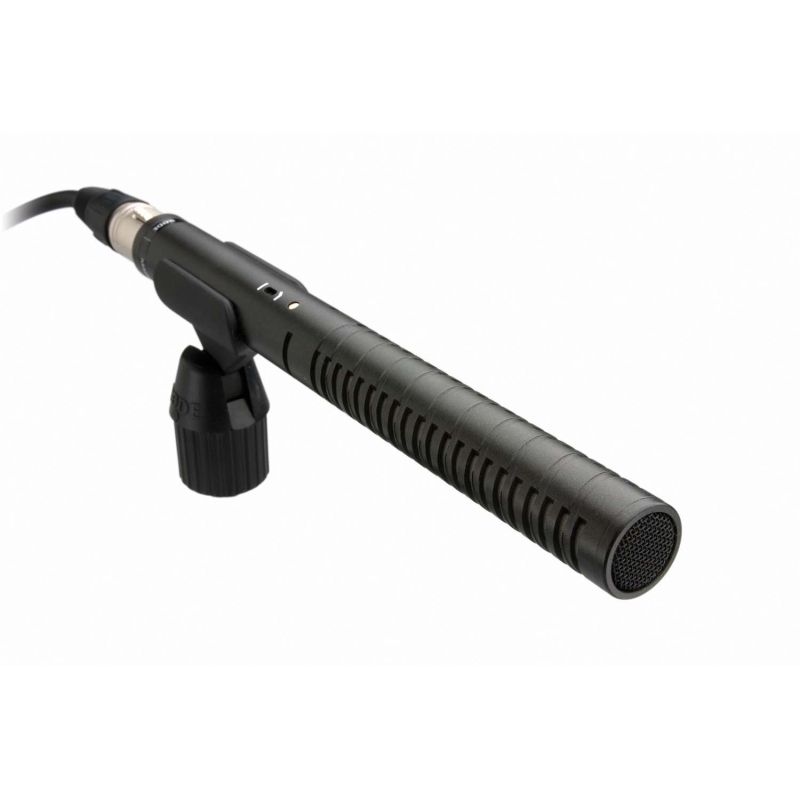

8 x Rode NTG 2 Directional Microphone
2 x Sonifex AVN-DIO10 – DANTE Audio Embedder
With the DANTE audio embedder the Van is realy flexible in building multiple types of audio feeds under the video.
2 x Genelec Audio Monitor for director sound

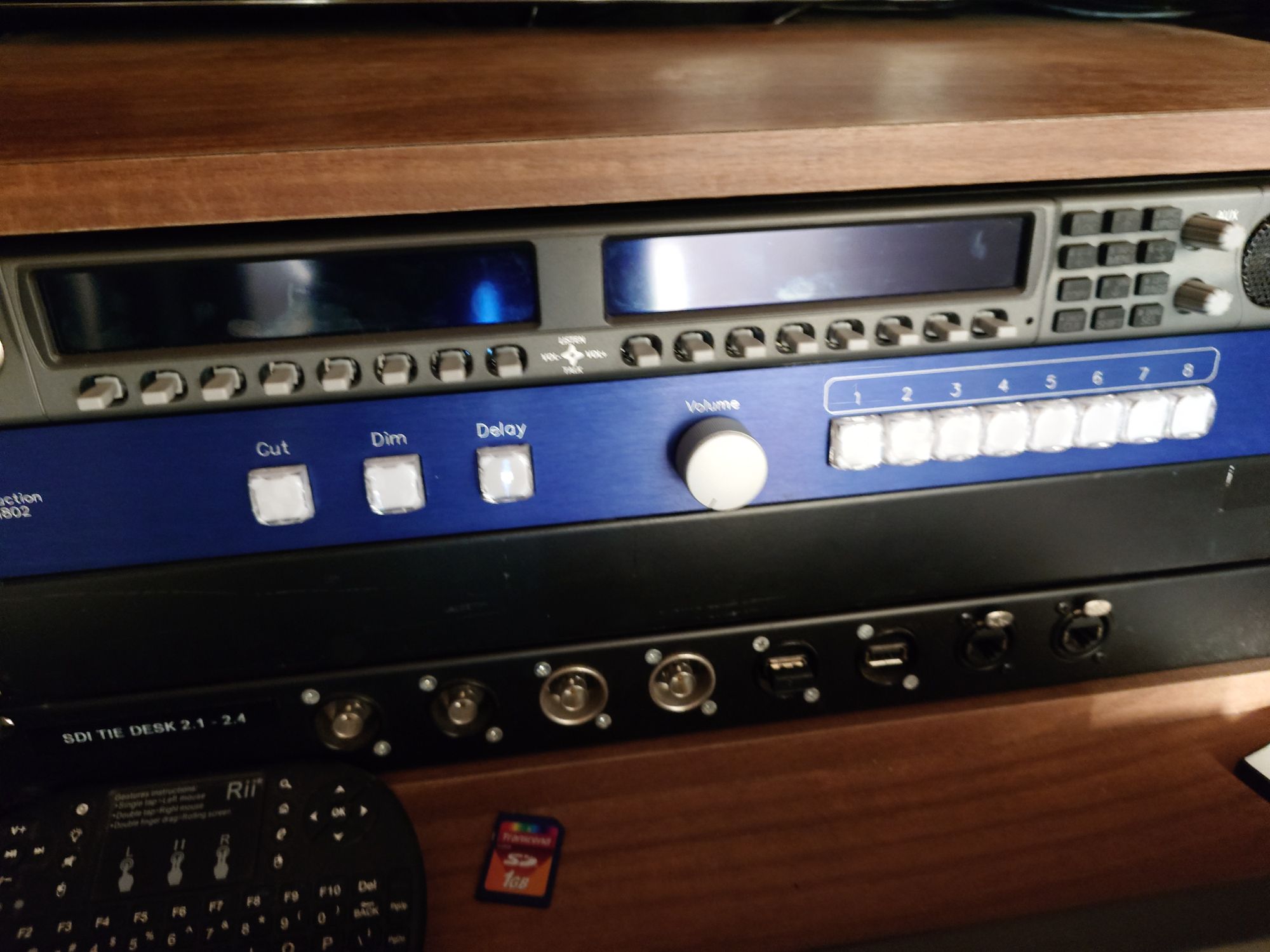

1 x CTP Systems Production Monitor DPM802 for directors audio selection and volume control.

Intercom:

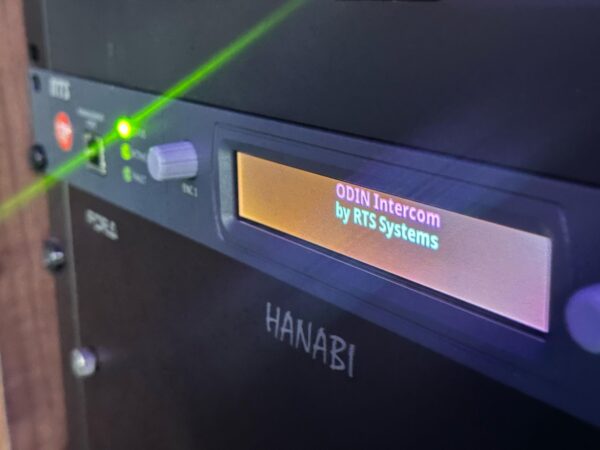

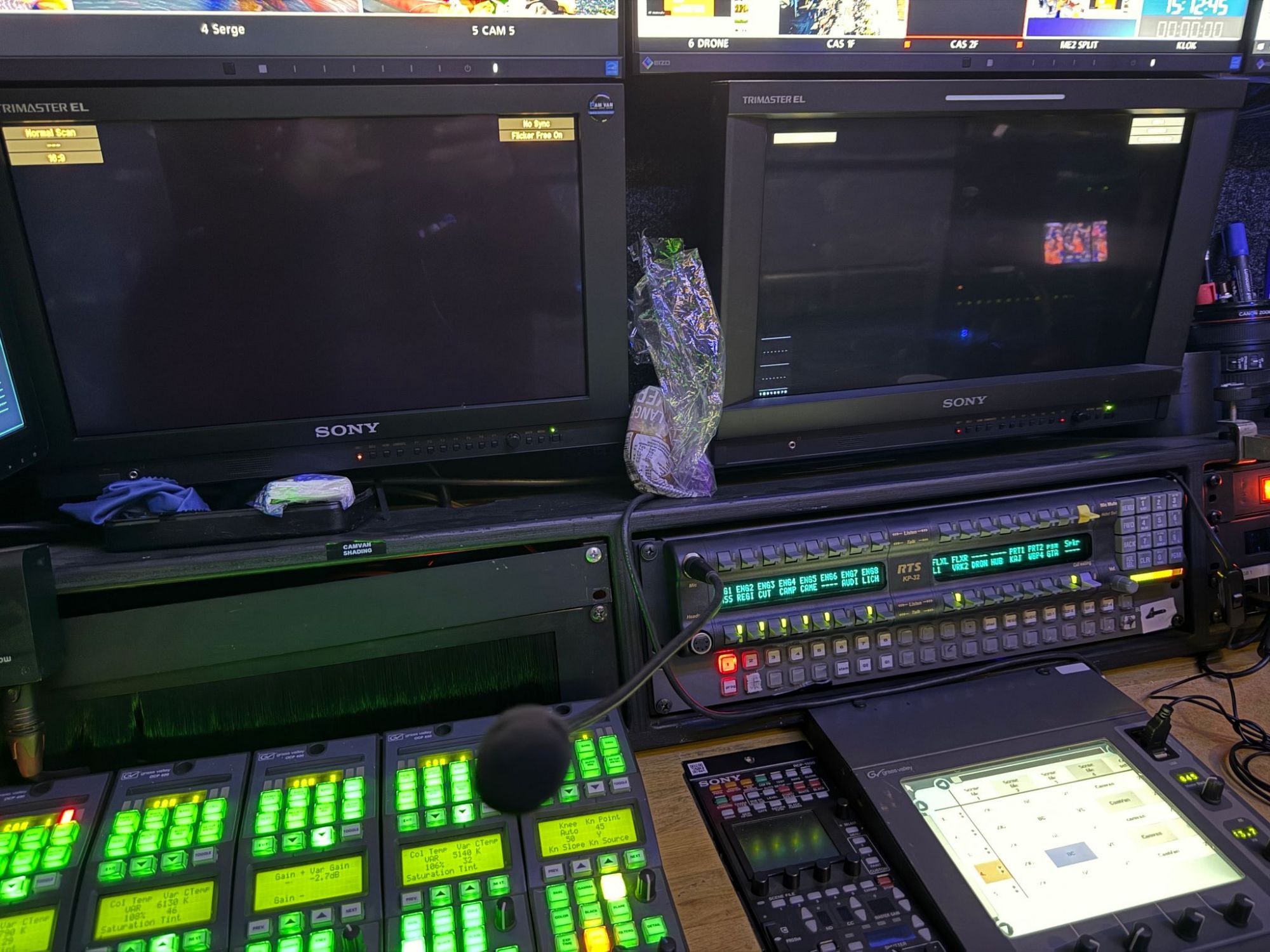

1 x RTS ODIN 128 ports

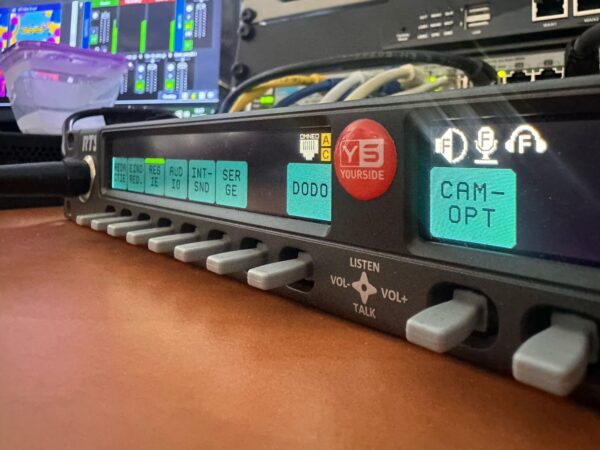

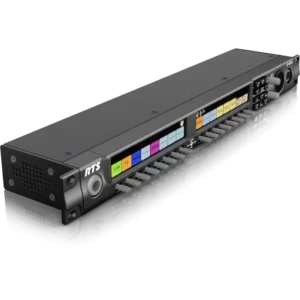

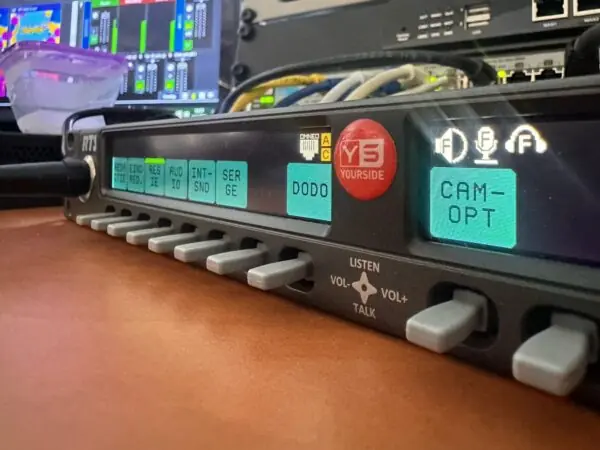

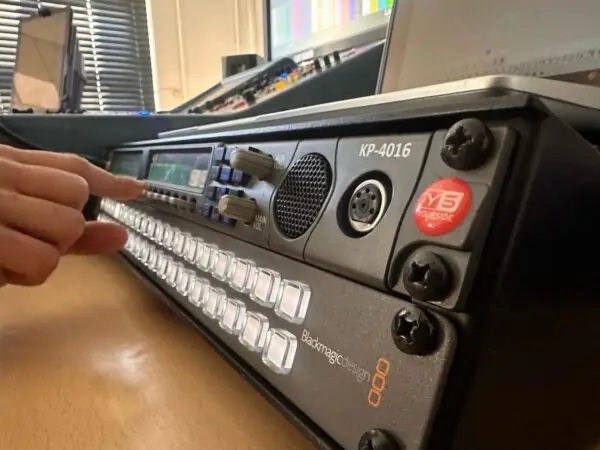

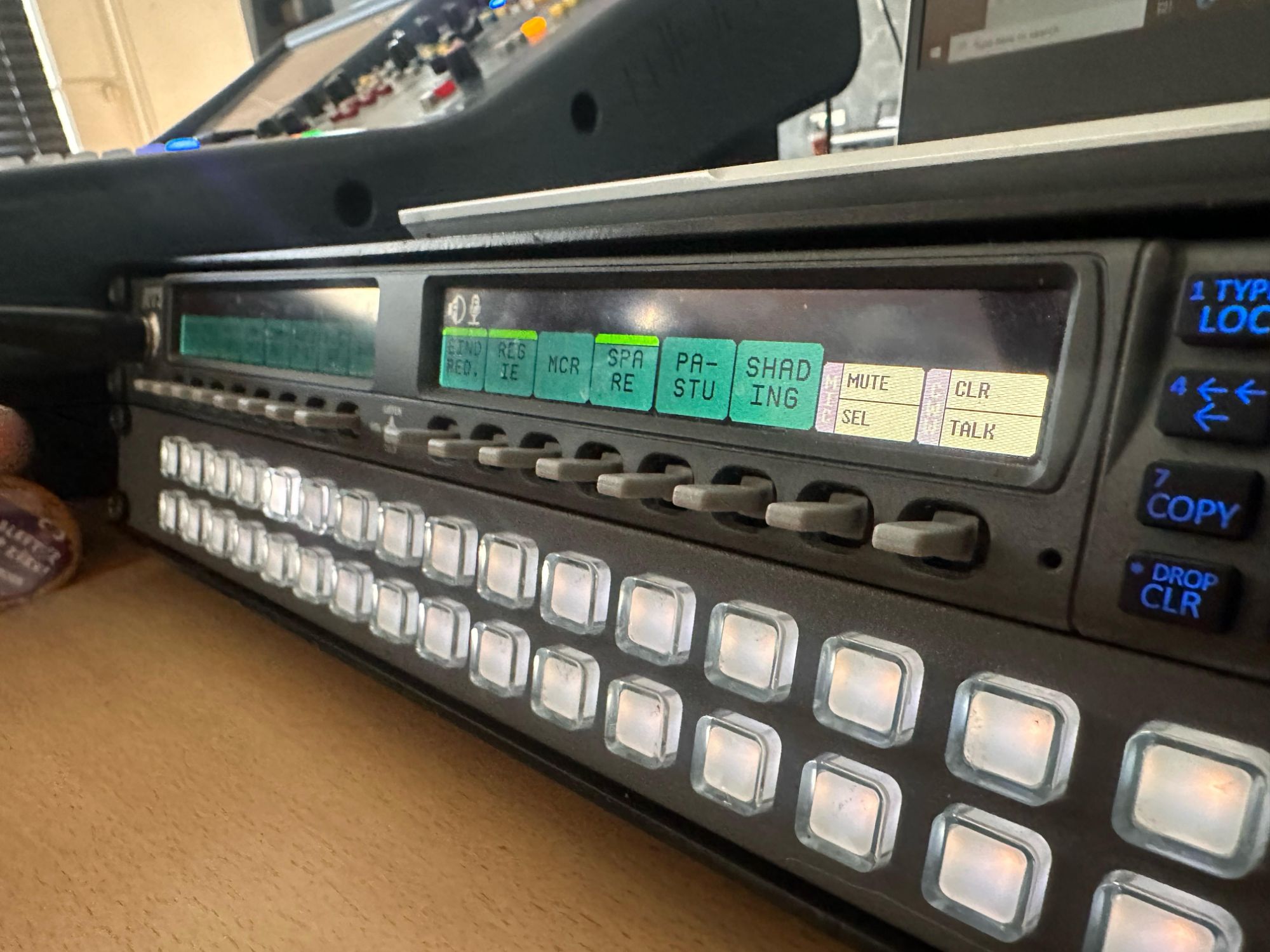

4 x RTS KP-4016 Adv. Audio – Extra’s available
Our KP panels are licensed with the advanced audio version allowing remote control for support and adding extra options to make it more efficient in communications.
1 x Prodys Quantum ST Duo 2 IP Codec (4 channels of communication via IP)
The Prodys can be used to provide talkback towards master controlrooms. Yourside is partner with ipitpro making sure our Codec solution is compatible with 90% of all remote codecs.

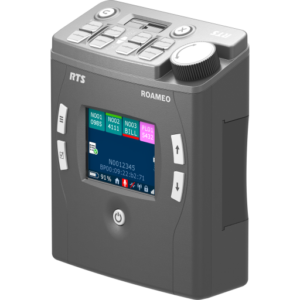

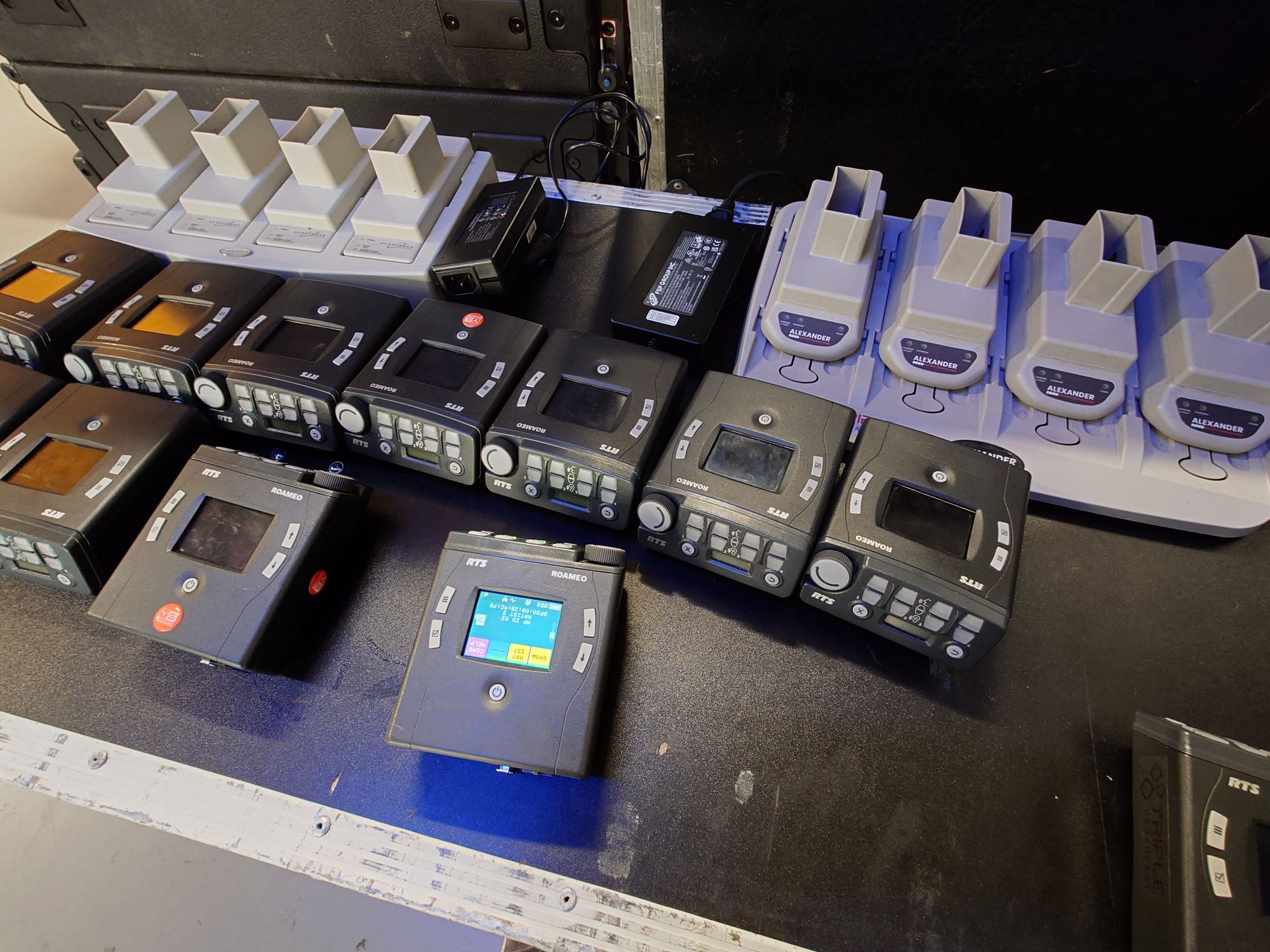

      Multiple TR-1800 Wireless beld-packs available on request. Also RTS Digital Beldpacks availble

Want to come by and have a look in the OB van ? We are happy to show you around and demo the powerful options of the OBvan! Check out the photo’s here as well and maybe we can convince you to choose YourSide Broadcast Assistance for your next production! Compact powerhouse: Fully equipped 4–8 camera OB van for pro HD/4K productions.

Please note:

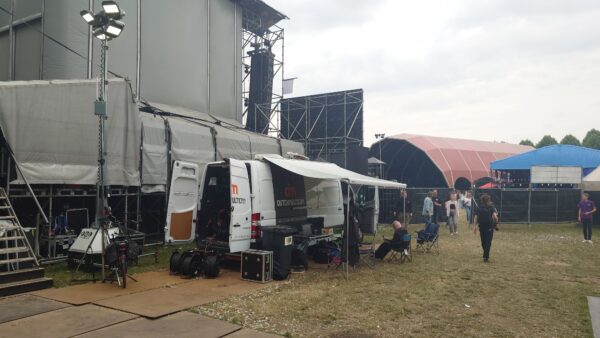

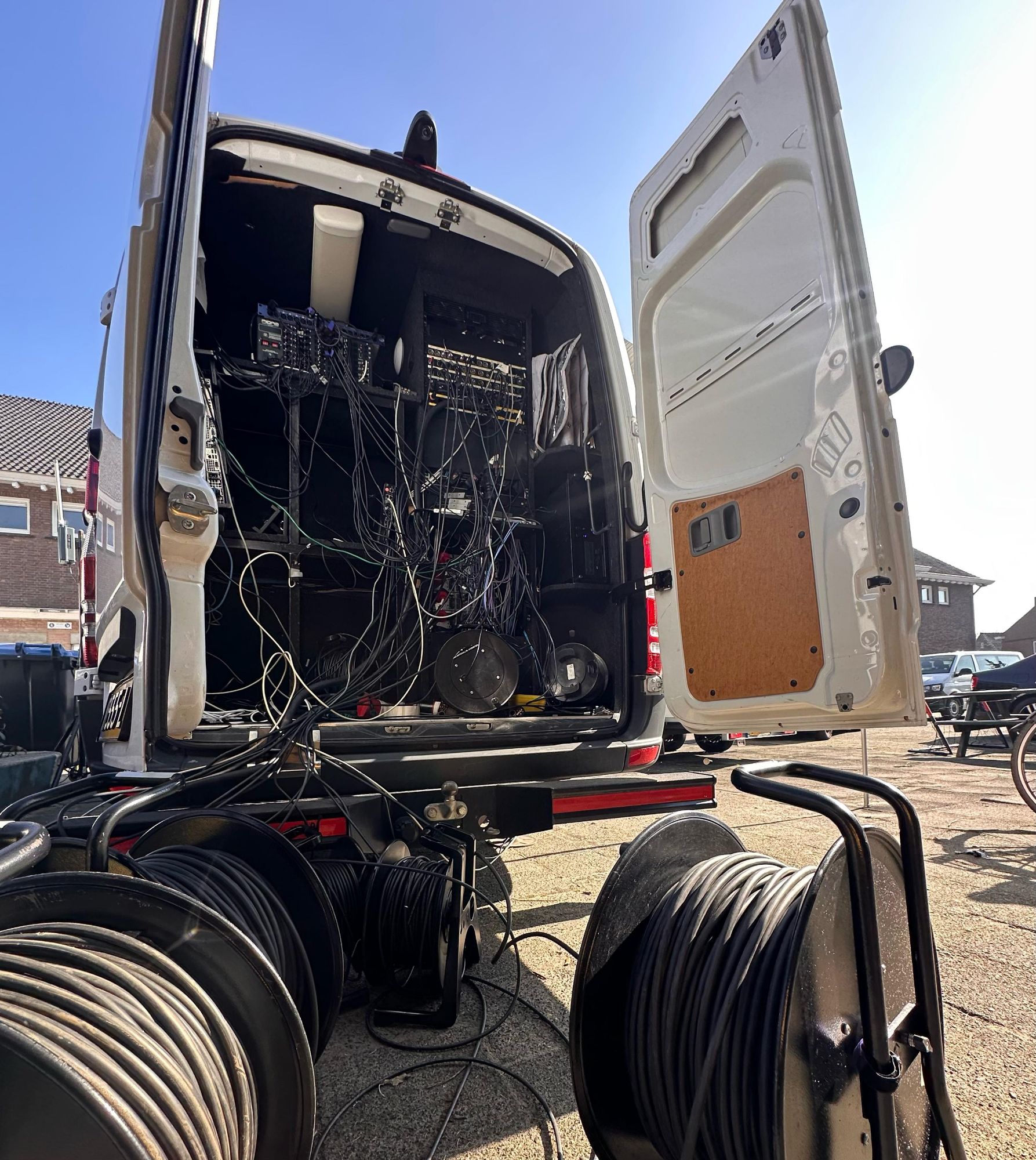

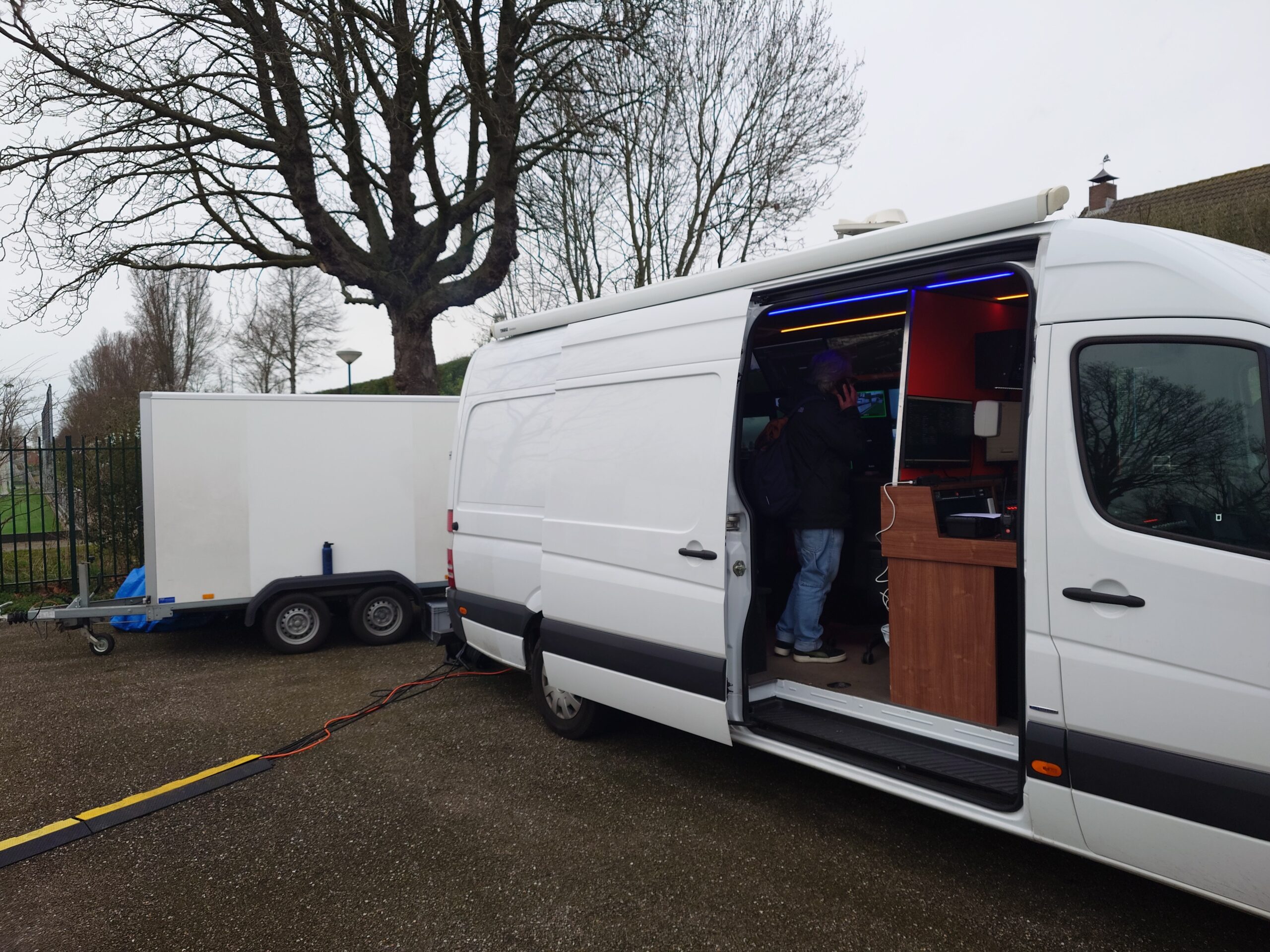

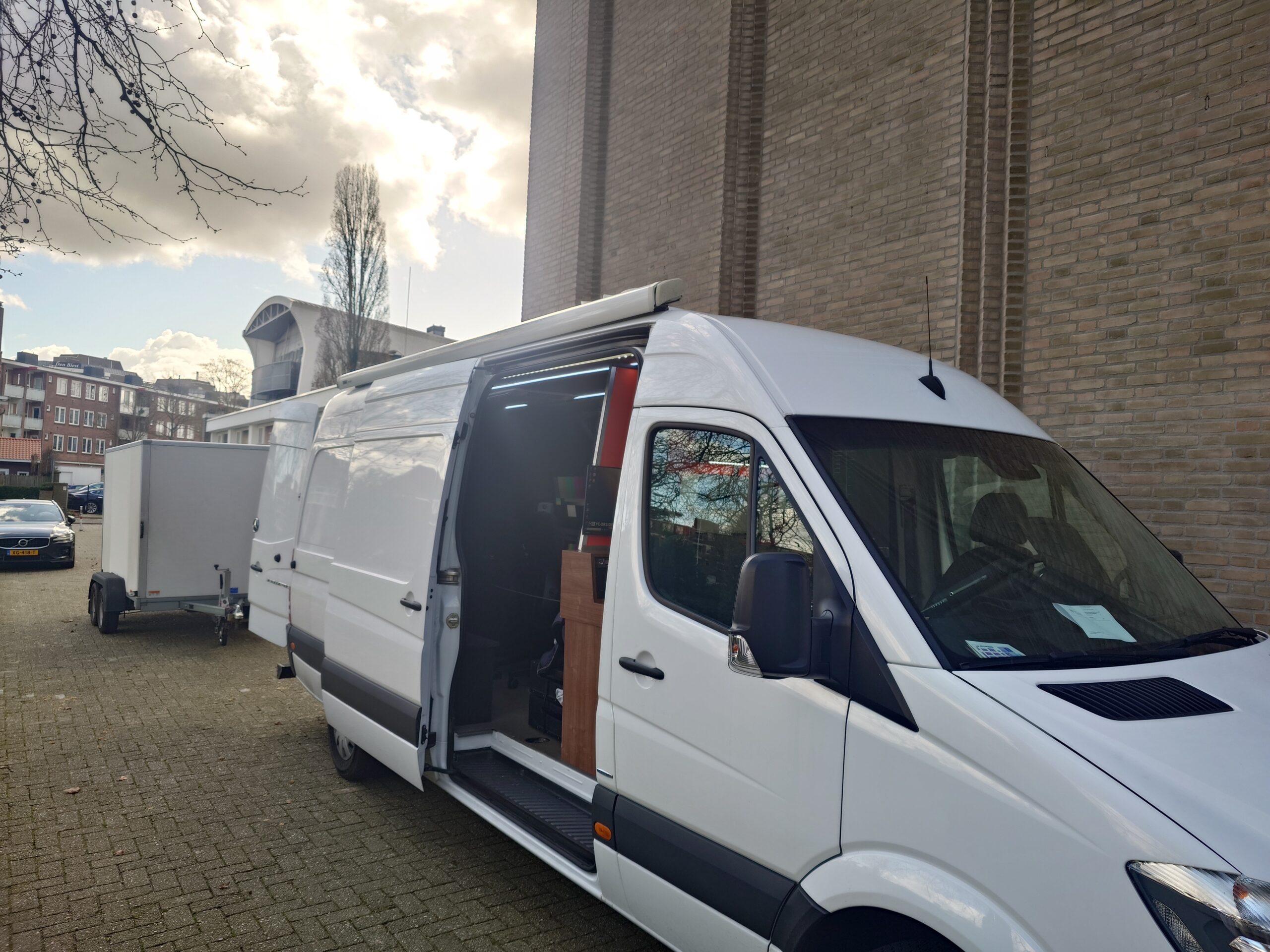

At Arival of the OB-van Power is expected to be delivered if not discussed otherwise. This OB Unit uses 3 Phase CEE 32 AMP cable. If internet Streams need to be made also Internet is expected to be delivered at the OB-van on ethernet RJ-45 with DHCP enabled.
