TESLA TECH – TTP1-003-C

Beschrijving

INPUT CEE 63A 400V 5P (Mennekes)

PROTECTION: 1x MCB C63A 4P (Schneider Electric)

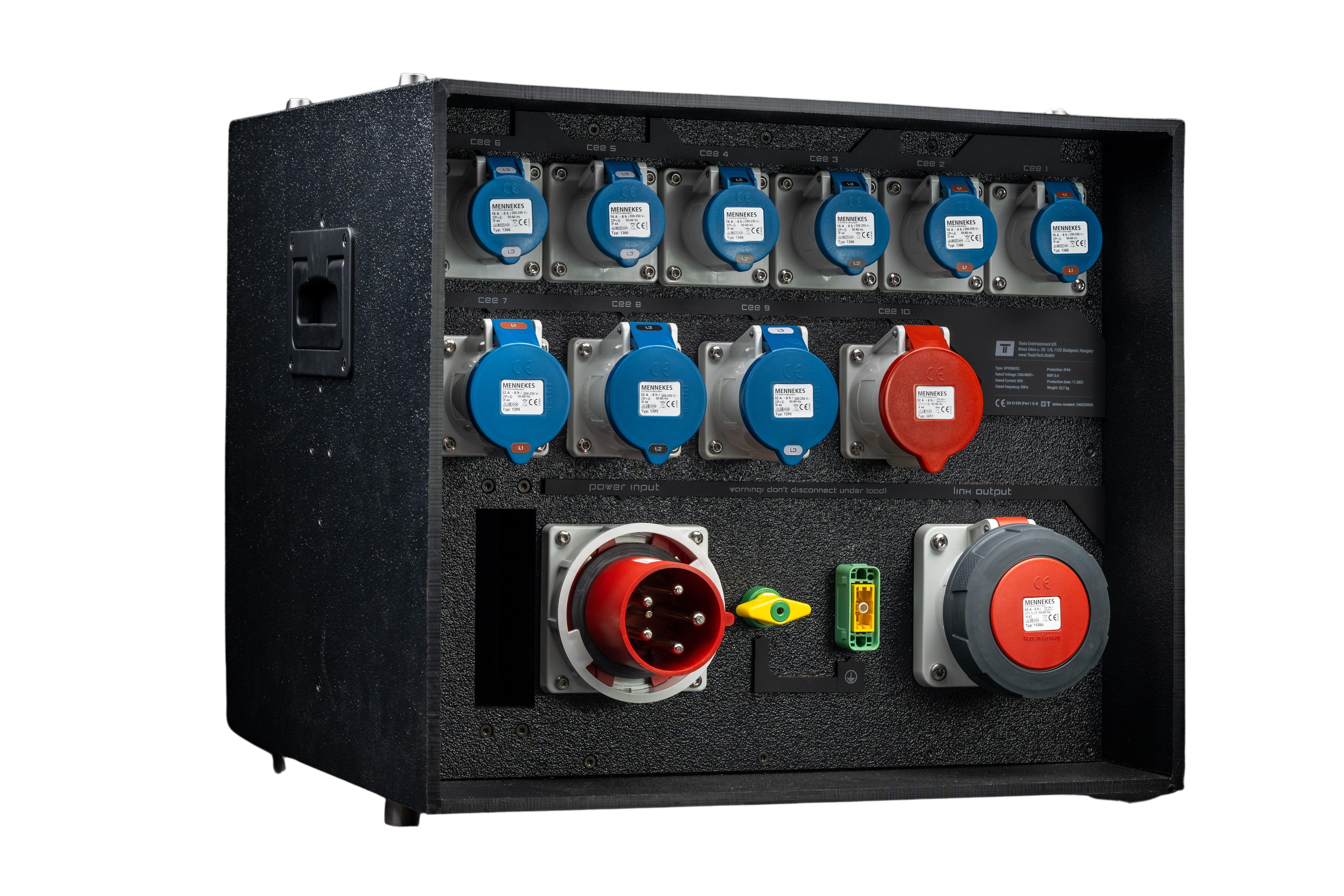

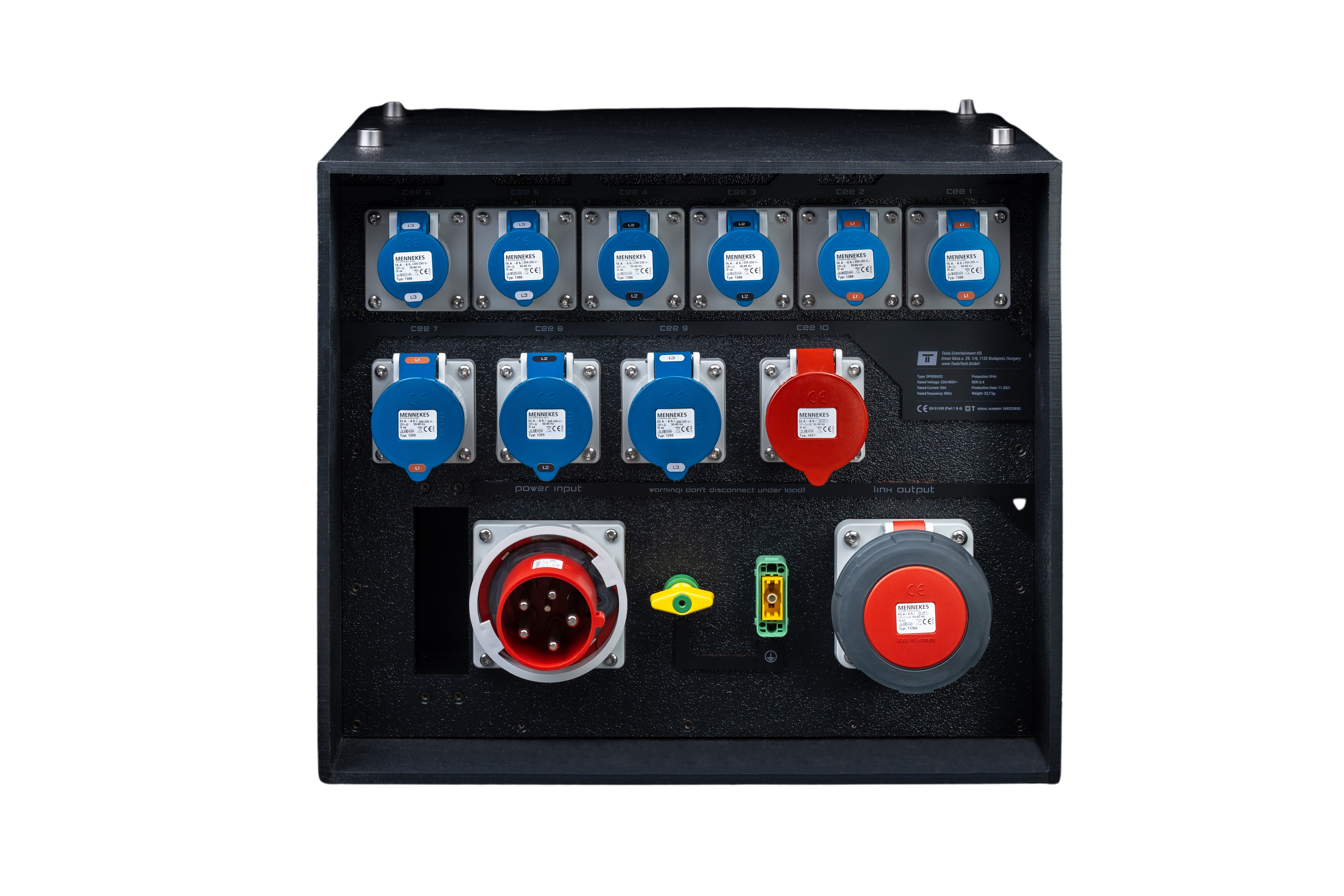

OUTPUT:
6x CEE 16A 3P (Mennekes)
3x CEE 32A 3P (Mennekes)
1x CEE 32A 5P (Mennekes)
1x CEE 63A 5P (Mennekes)
1x M8 earth stud (Schützinger)
1x Han® GND grounding connector (Harting)

PROTECTION
3x RCCB 40A 30mA 2P A type, 6x MCB C16A 1P (Schneider Electric)
3x RCBO C32A 30mA A type 2P (Schneider Electric)
1x RCBO C32A 30mA A type 4P (Schneider Electric)
Looped

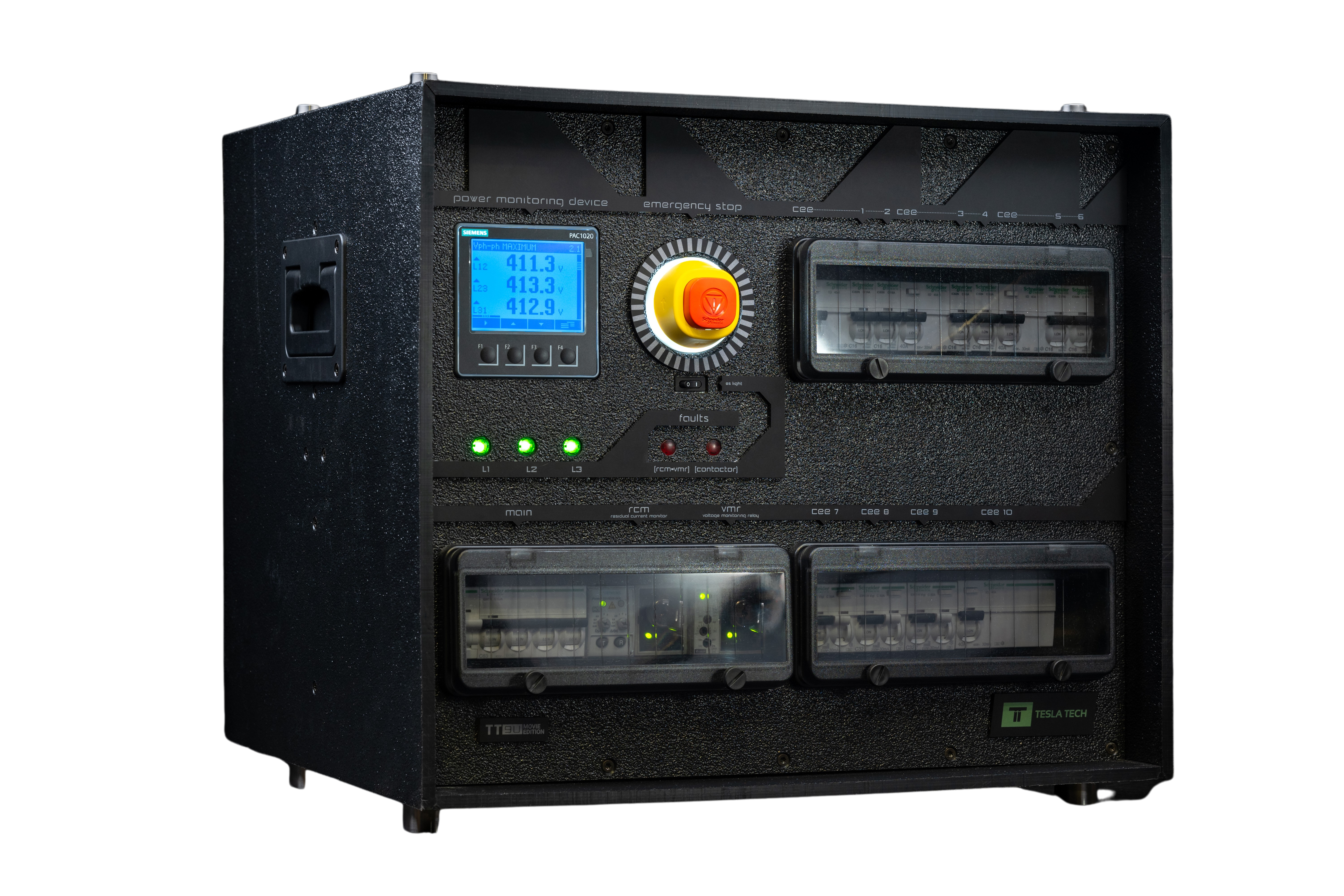

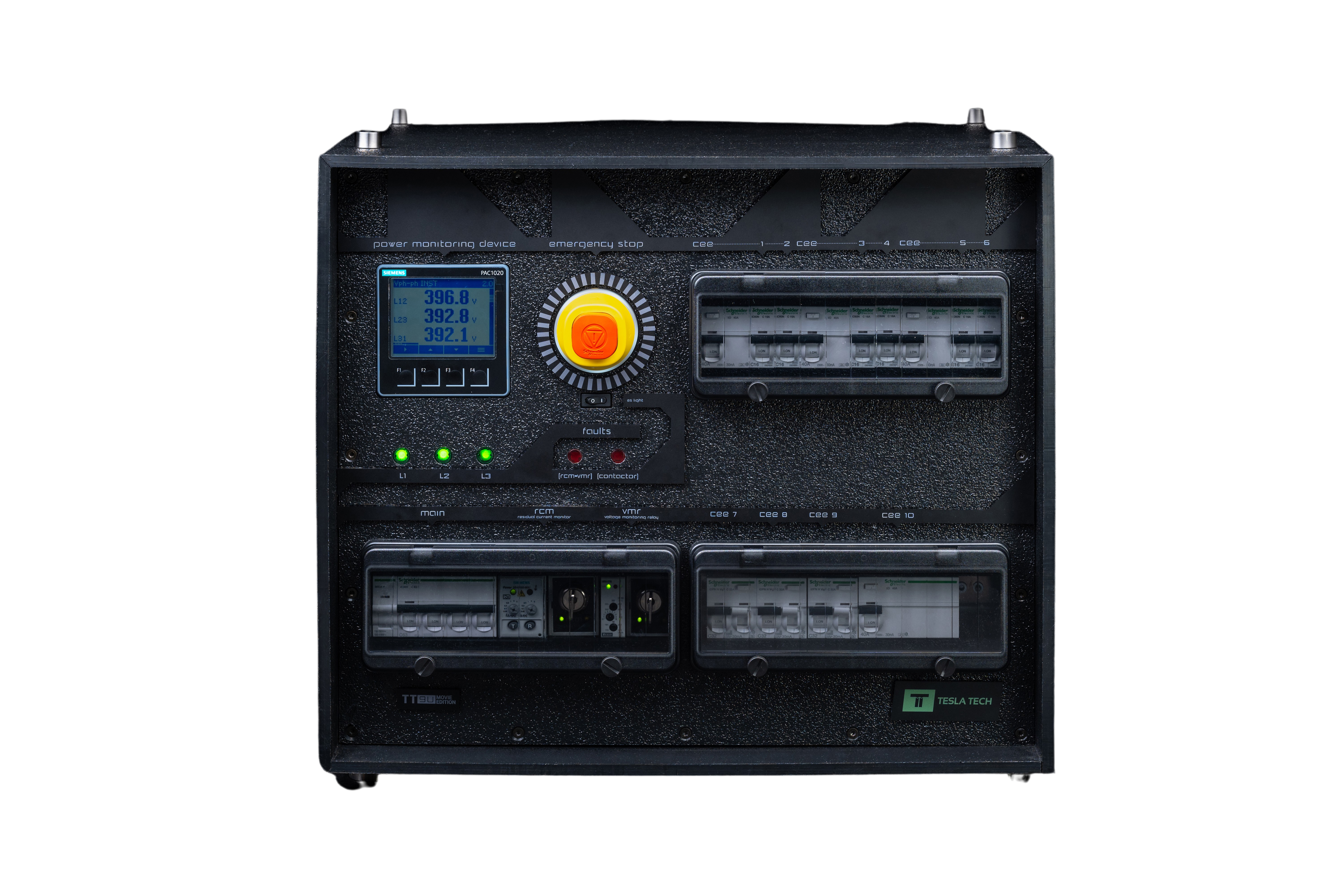

ADDITIONAL FUNCTIONS

MEASURING DEVICE
1x power monitoring device (Siemens)

SAFETY
1x emergency button with shunt trip release (Schneider Electric)
1x residual current monitor (RCM) (Siemens)
1x voltage monitoring relay (VMR) (Elko EP)
2x key switches to bypass RCM and VMR
1x contactor that switches the outputs depends on the status of RMC and VMR (Schneider Electric)

INDICATOR LIGHTS
3x phase indicator LED (APEM)
2x fault indicator LED (for RCM/VMR and contactor fault indication) (APEM)



DIMENSIONS – 475mm x 520mm x 455mm (H x W x D)MATERIAL – HDPE – UV resistant | Protection type – IP44 and IK08CERTIFICATION – (EN 61439-1 and EN 61439-4)
