AudioPressBox – APB-320 C-USB

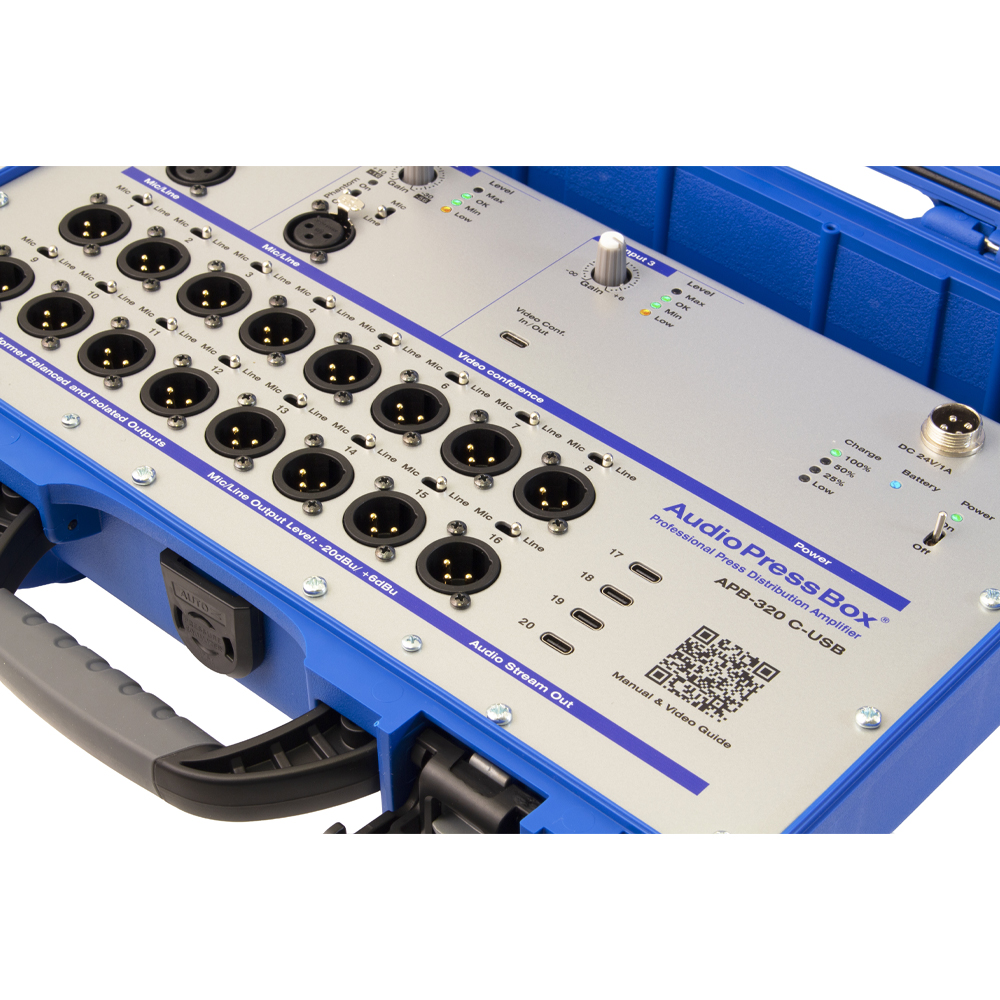

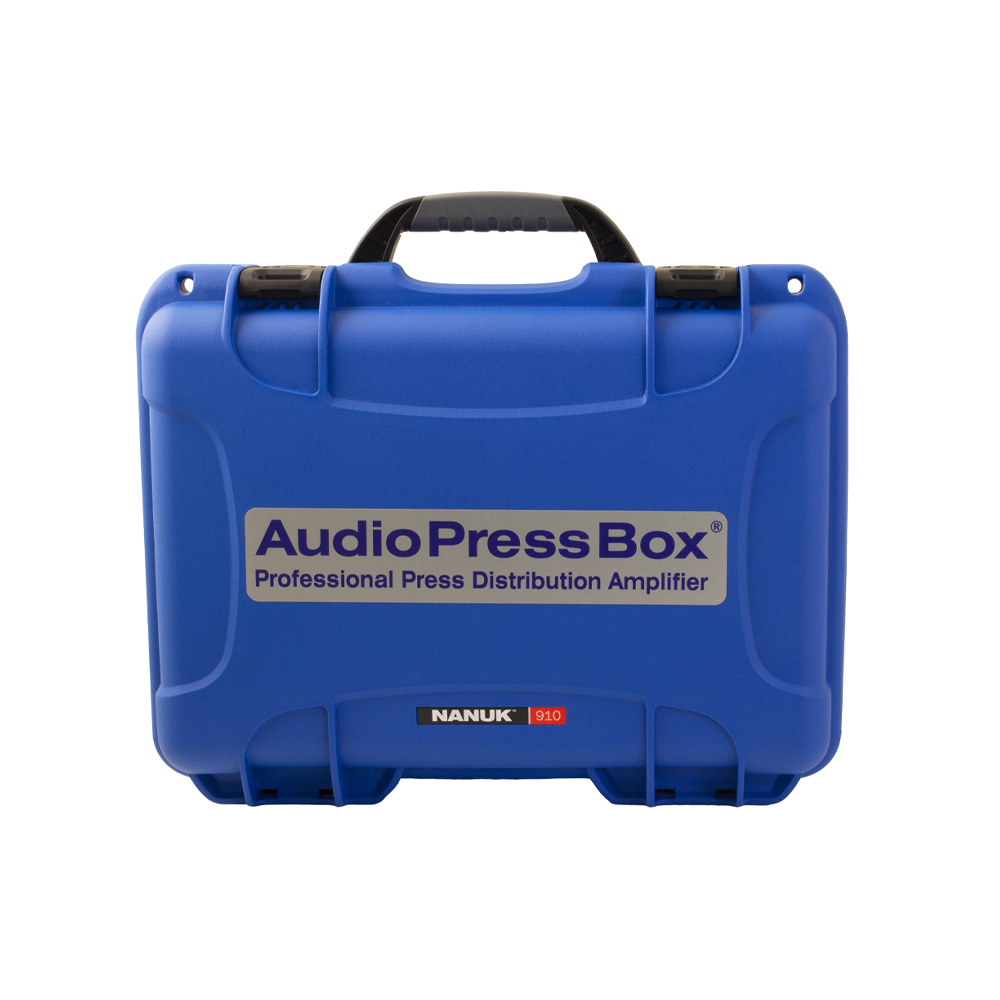

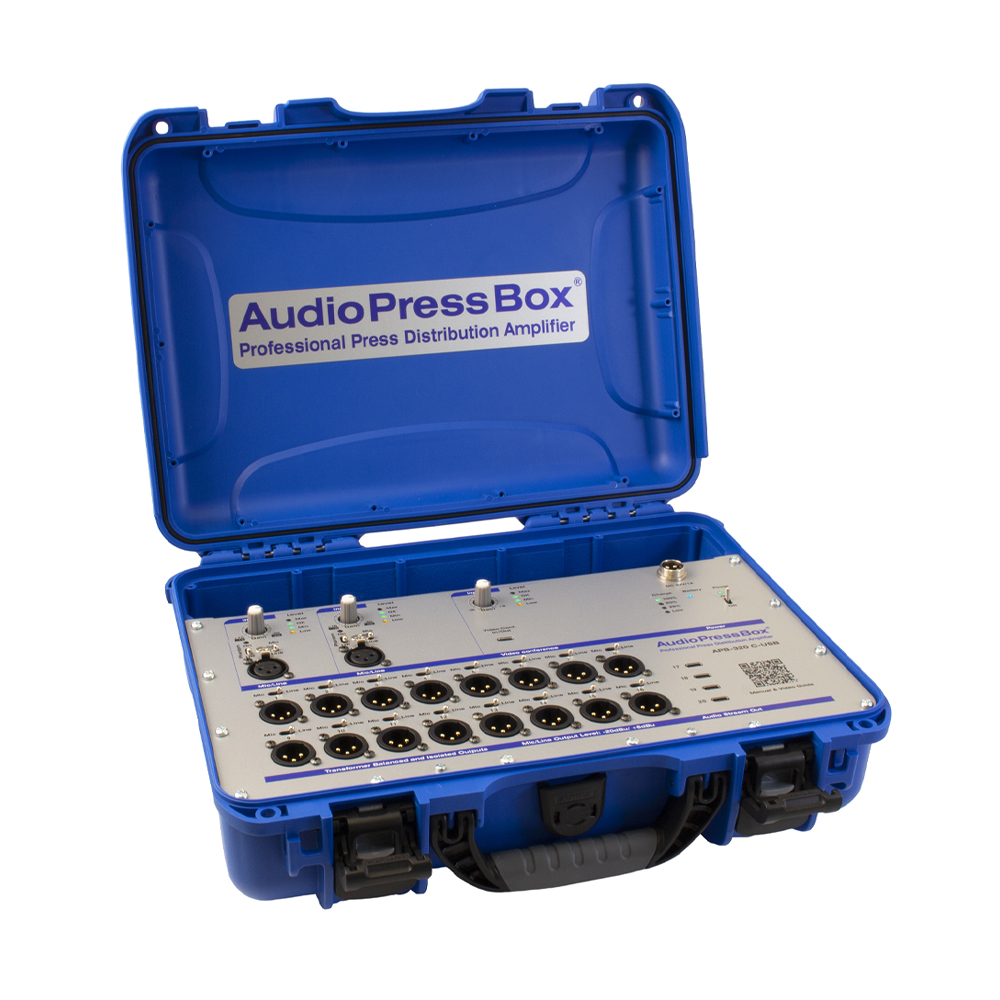

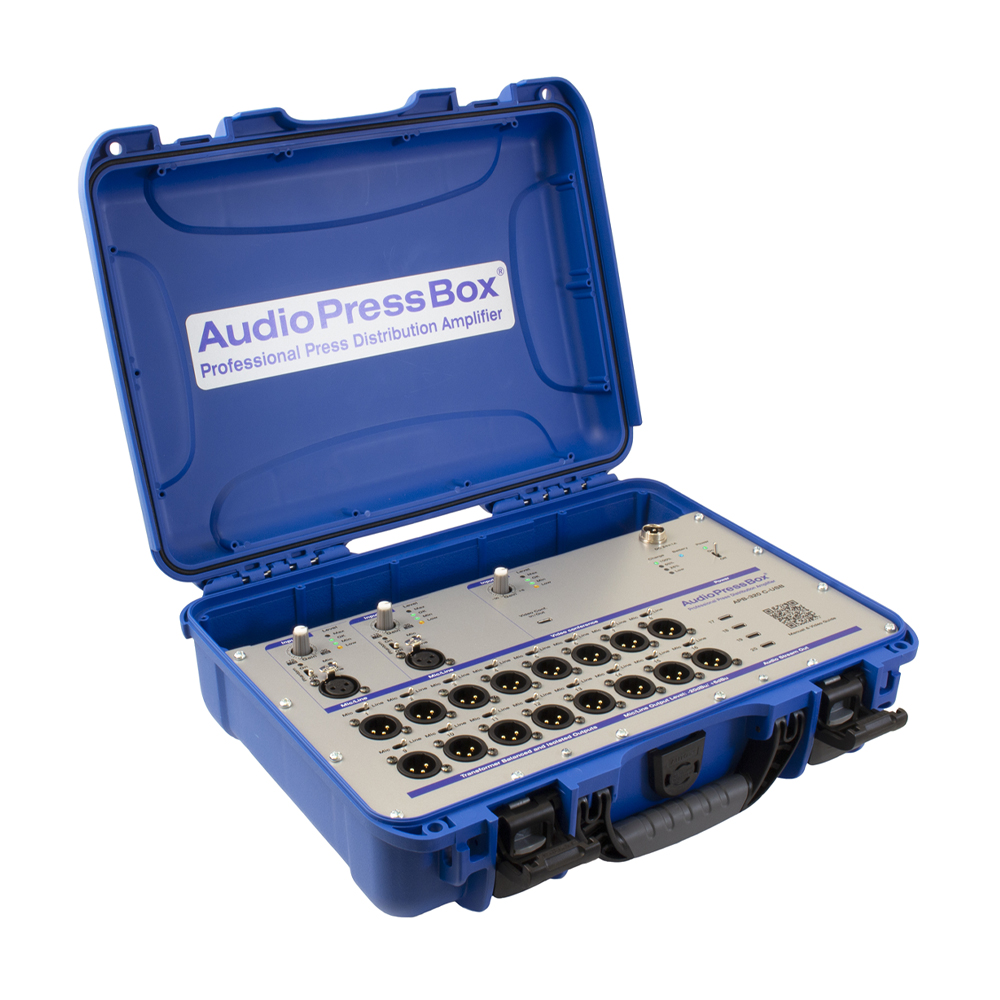

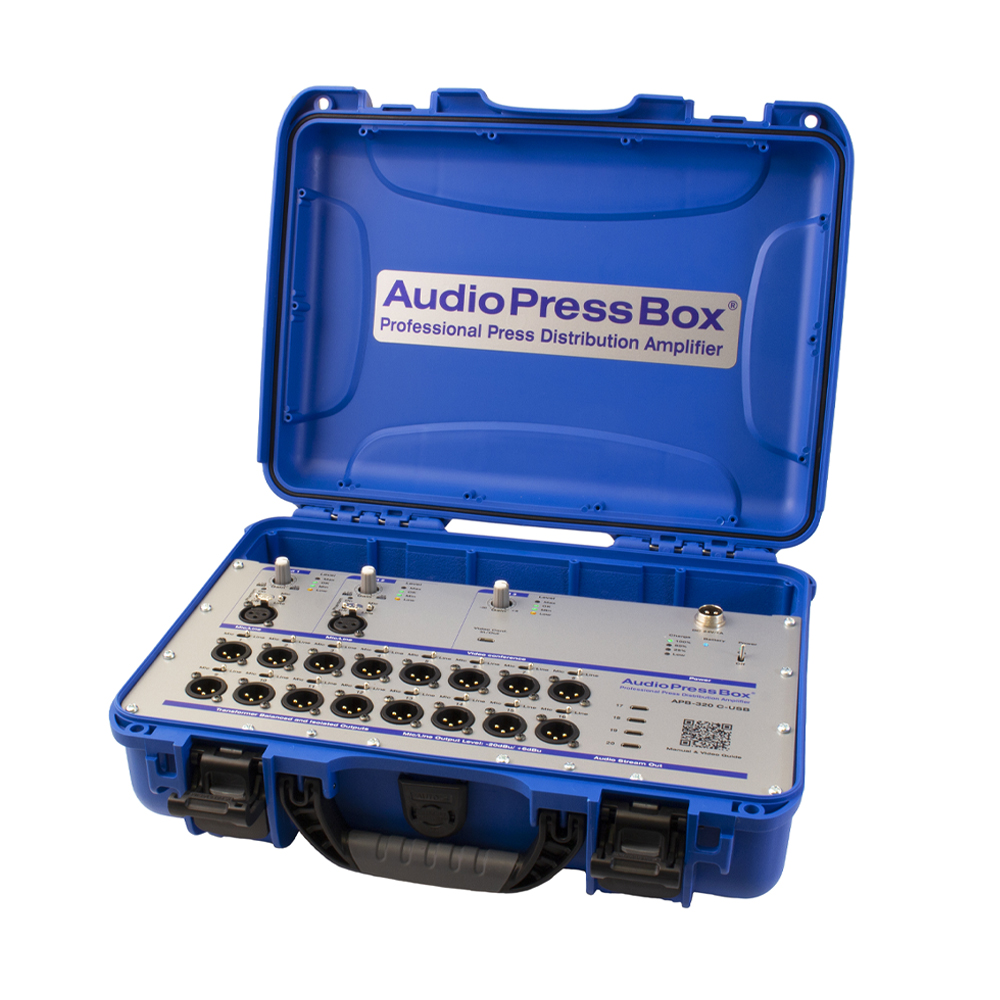

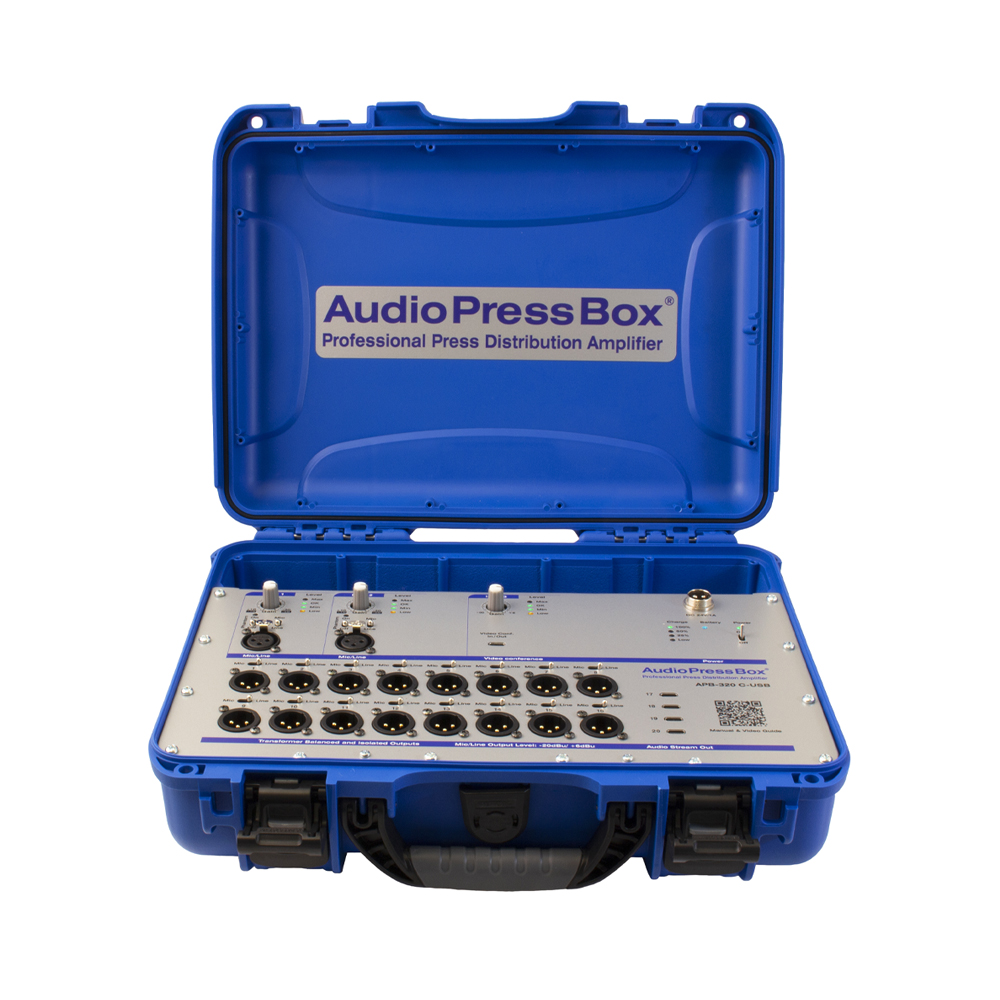

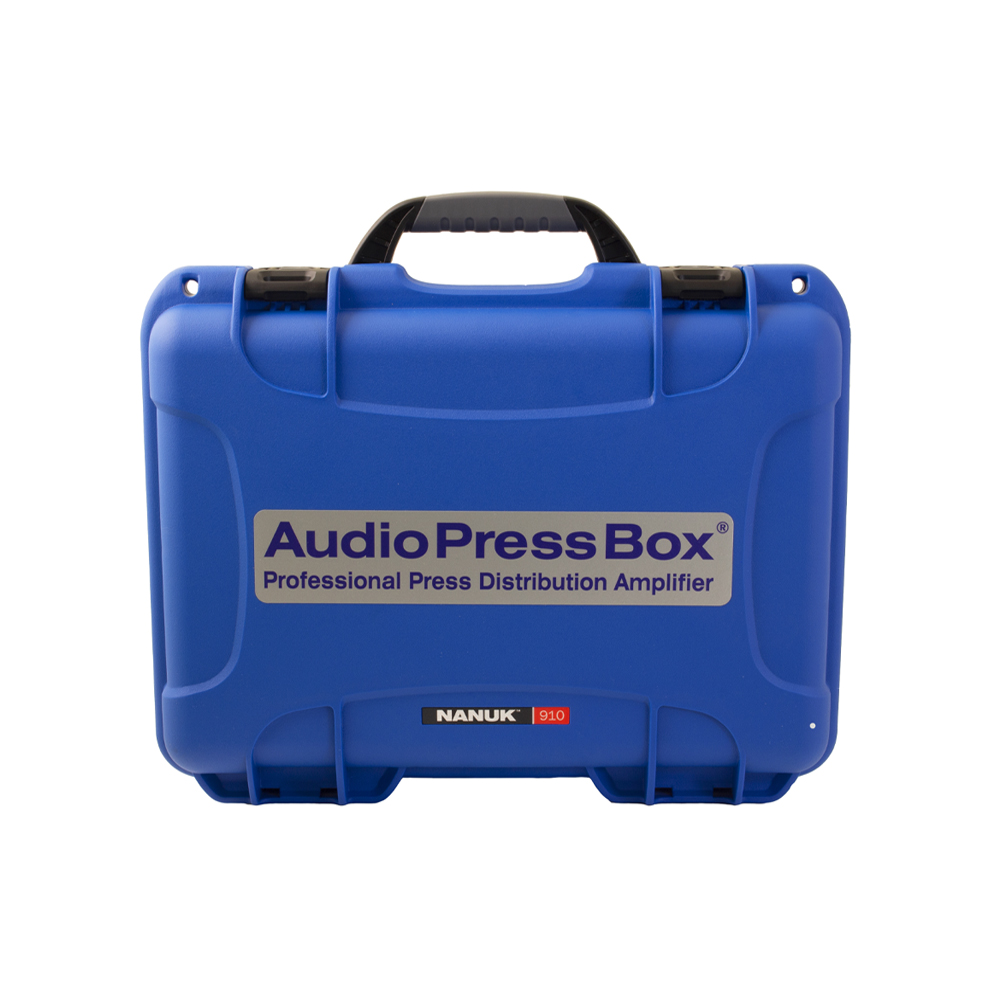

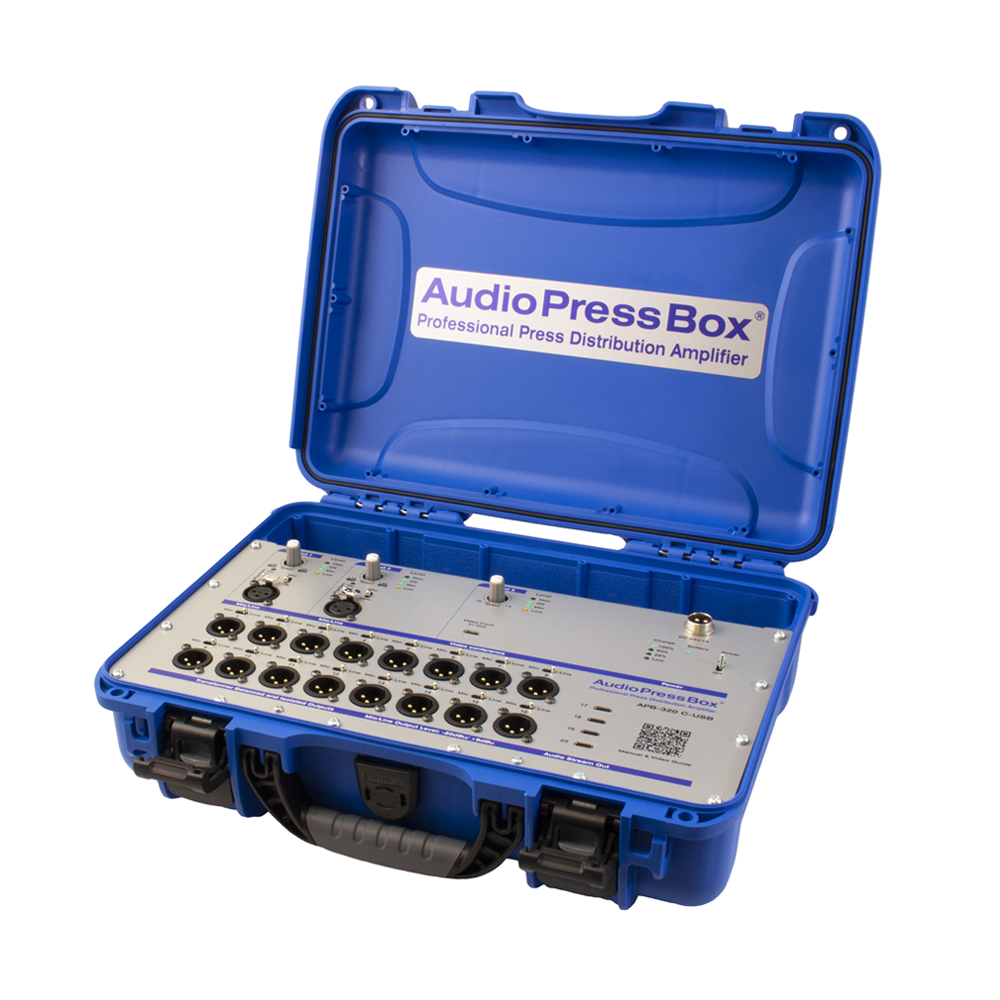

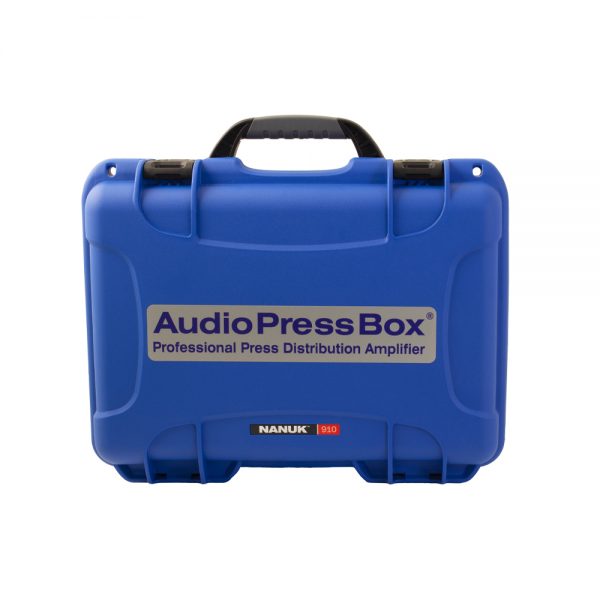

Professional portable, active, pressbox with 2 Analog Line/Mic inputs, 1 Digital USB-C input & output and 16 Analog Line/Mic & 4 Digital USB-C outputs. It is suitable for both indoor and outdoor press conferences due to built-in rechargeable accu pack and heavy duty Nanuk case. The USB-C allows it also a video conference in & out connection.

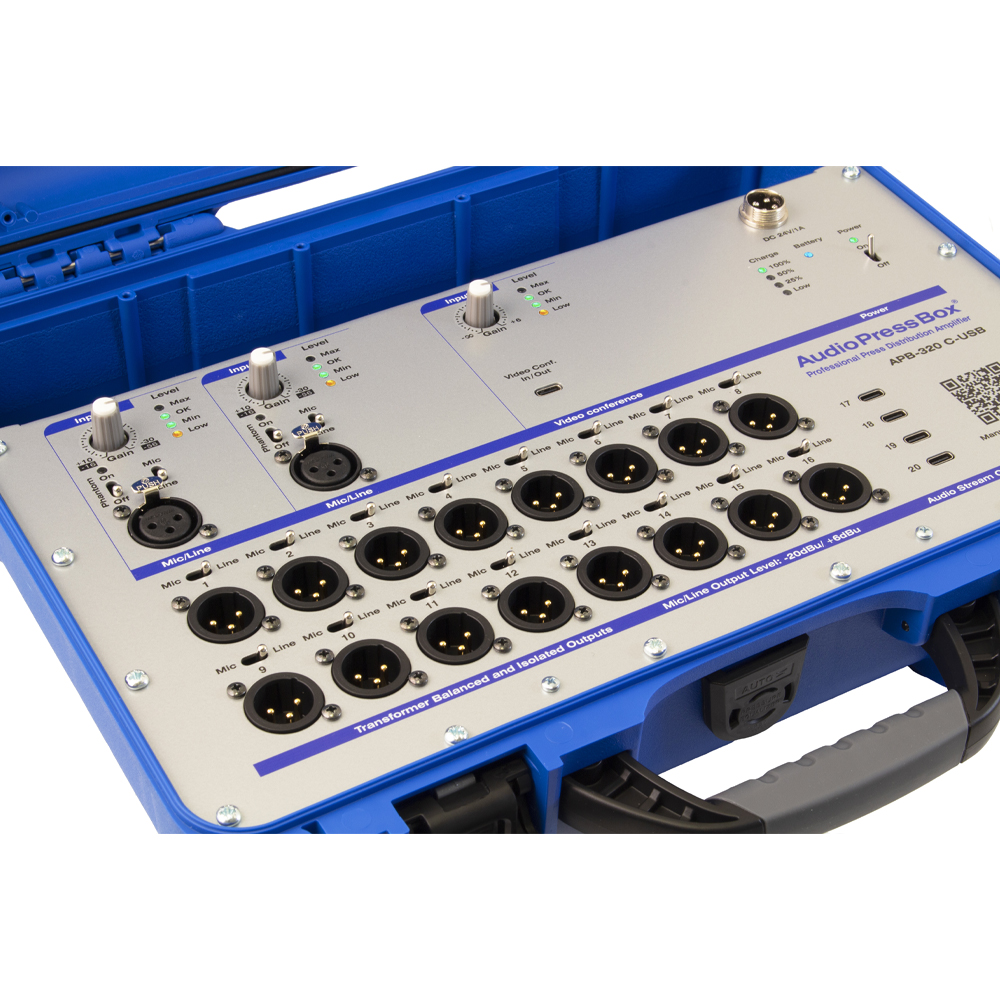

  • 2 Analog MIC (phantom power) / LINE inputs – balanced with gain control and 26dB PAD
  • 1 Digital USB-C input & output
  • 16 Analog XLR balanced and individually transformer isolated outputs
  • XLR outputs are switchable between MIC or LINE output level
  • 4 Digital USB-C outputs
  • Built-in Compressor and Limiter for Analog (XLR) inputs
  • Li-Ion AccuPack with microprocessor controlled battery management
  • 20 hours battery operation time. Note: AccuPack is placed (built-in) inside the unit
  • On unit printed QR code for online access to manual, user guide and video guide

ABP-320 Specsheet

Download(818 KB)
